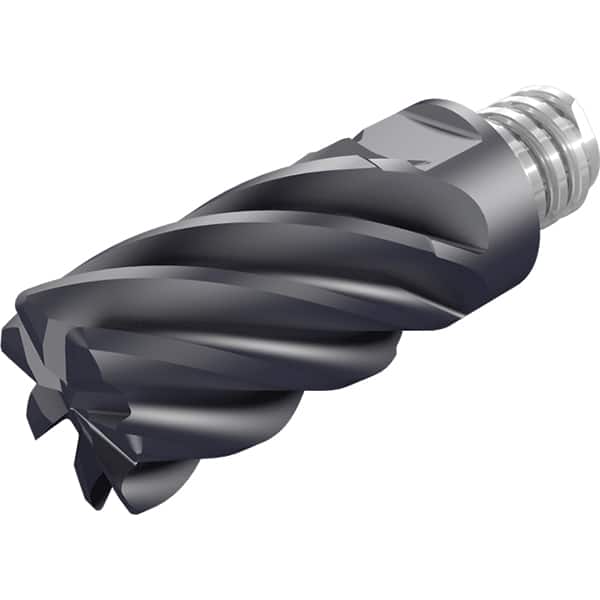

Iscar - MM EC080H12R05CF-7T05 Carbide End Mill Tip Insert
Item #: 15111941
Brand: Iscar
Model #: 3336717
Product Specifications
| Series | MM |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 8 |
| Cutting Diameter (Decimal Inch) | 0.3140 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 12.00 |
| Depth of Cut (Decimal Inch) | 0.4720 |
| Number of Flutes | 7 |
| Coating | TiAIN |
| Corner Radius (Inch) | 0.019 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.70800 |
| Mill Diameter (mm) | 12.00 |
| Finish/Coating | TiAIN |
| Corner Radius (mm) | 0.5 |
| Single or Double End | Single |
