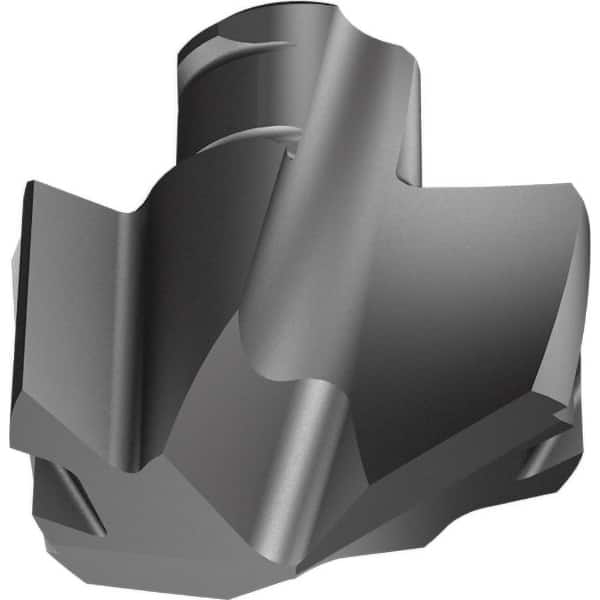

ICP 0232 Carbide Replaceable Tip Drill TiAIN Finish, 140° Included Angle, 5.9mm Diam, 3.85mm High, Through Coolant, Series SumoCham
Item #: 15111982
Brand: Iscar
Model #: 3346501
Product Specifications
| Diameter (Decimal Inch) | 0.2323 |
| Point Angle | 140 |
| Diameter (mm) | 5.90 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Cutting Direction | Right Hand |
| Series | SumoCham |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 5.5 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.1516 |
| Height (mm) | 3.85 |
| Head Length (Decimal Inch) | 3.8500 |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 0.2323 |
| Point Type | Split |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAIN |
| Included Angle Degree | 140 |
