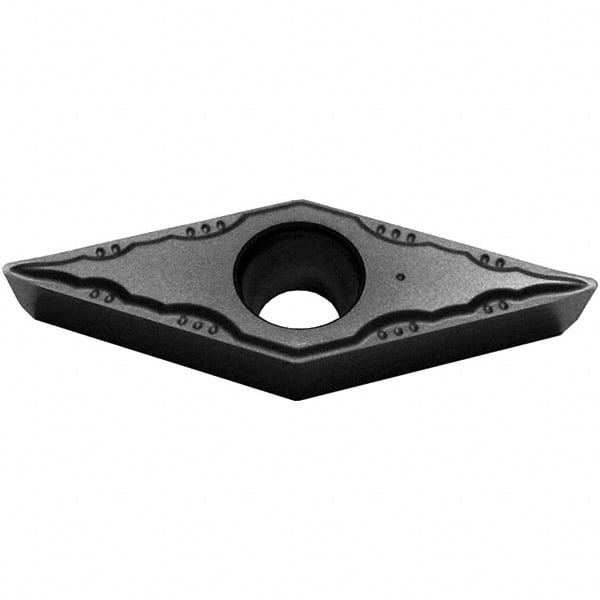

Sumitomo - VBGT220 MESI Grade AC5025S Carbide Turning Insert - TiAlSiN Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.0039" Corner Radius
Item #: 15116999
Brand: Sumitomo
Model #: 1NT6041
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 220 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | AC5025S |
| Coating | TiAlSiN |
| Material Grade | S20 |
| Chip Breaker | MESI |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 5 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Included Angle | 35 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Diamond |
