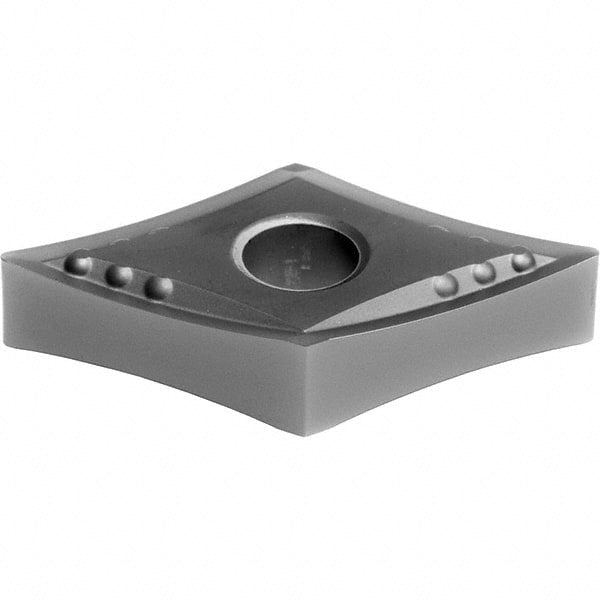

Sumitomo - DNMG431 EUP Grade AC5025S Carbide Turning Insert - TiAlSiN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.0156" Corner Radius
Item #: 15121569
Brand: Sumitomo
Model #: 19T6366
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC5025S |
| Coating | TiAlSiN |
| Material Grade | S20 |
| Chip Breaker | EUP |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Negative |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNMG431EUP-AC5025S |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Diamond |
