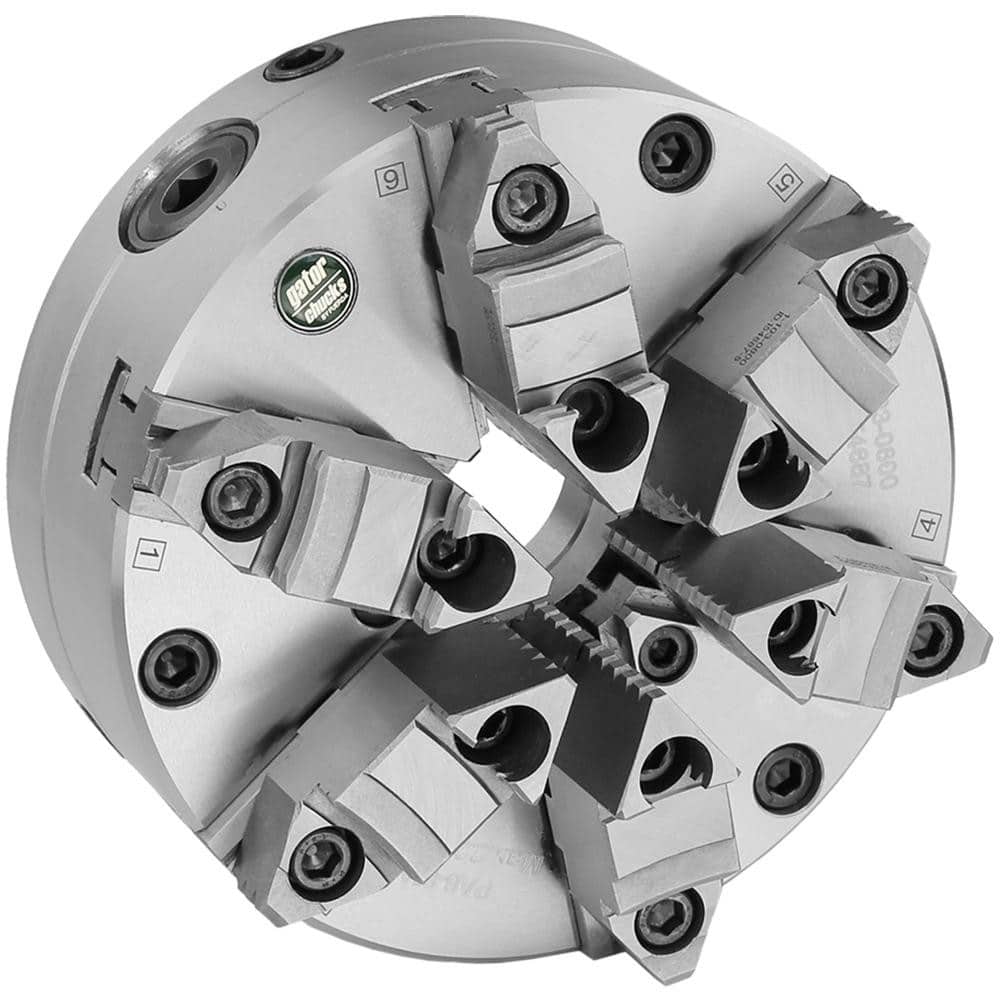

Self-Centering Manual Lathe Chuck: 6-Jaw, 12″ Dia Two-Piece Jaws, Front Mount, Adjustable, 1,100 Max RPM
Item #: 15184039
Brand: Gator Lathe Chucks
Model #: 1-153-1200
Product Specifications
| Chuck Type | Self-Centering |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | Yes |
| Through-Hole Diameter (Decimal Inch) | 4.0550 |
| Chuck Diameter (Decimal Inch) | 12.0000 |
| Chuck Diameter (Inch) | 12 |
| Minimum Jaw Capacity (Inch) | 0.4700 |
| Minimum Jaw Capacity (mm) | 0.47 |
| Maximum Jaw Capacity (mm) | 12.40 |
| Maximum Jaw Capacity (Inch) | 12.4000 |
| Jaw Height (Decimal Inch) | 2.2400 |
| Maximum Rpm | 1100 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Number Of Jaws | 6 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Fine Adjustment Screws; Chuck Wrench; Hex Keys |
