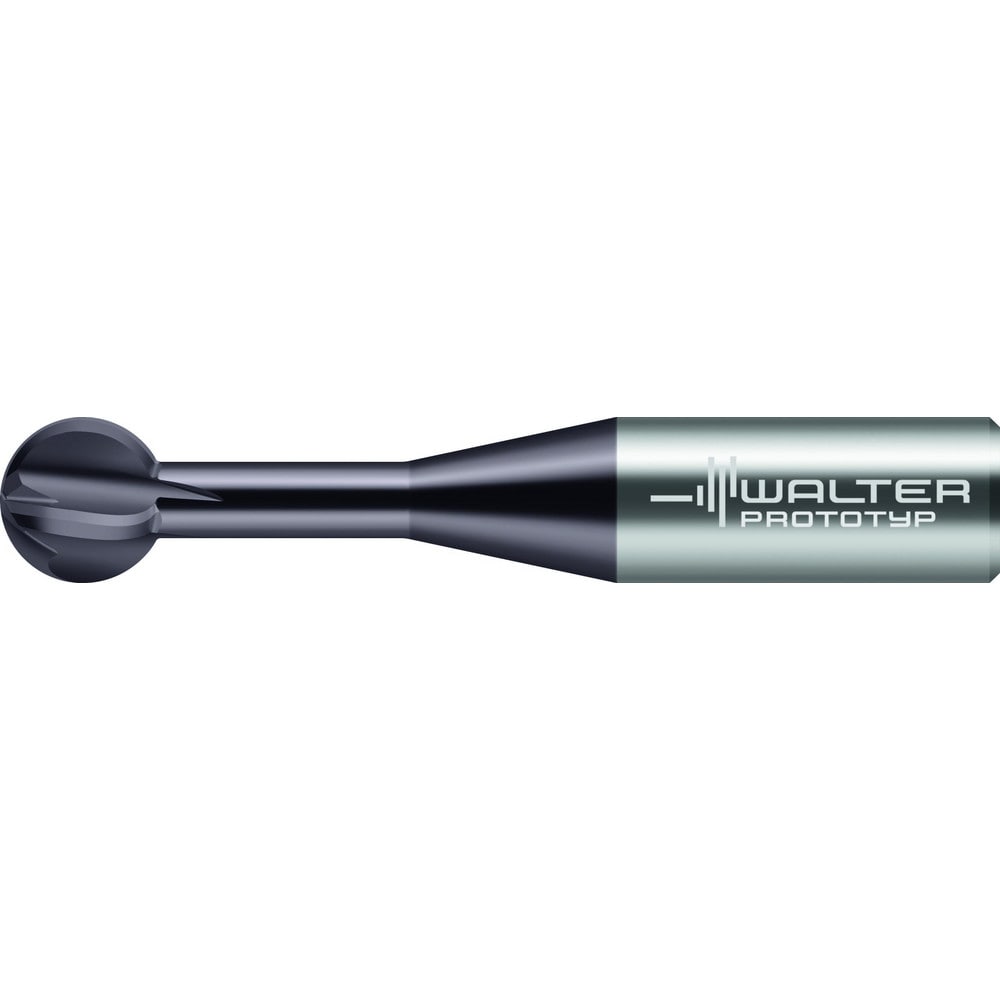

Ball End Mill: 3/16" Dia, 3/32" LOC, 4 Flute, Solid Carbide
Item #: 07083561
Brand: Walter-Prototyp
Model #: 8418097
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0938 |
| Length of Cut (Inch) | 3/32 |
| Overall Length (Inch) | 2 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 1.0402 |
| Coating/Finish | TiAlN |
| Helix Angle | 15 |
| Shank Diameter (Inch) | 3/16 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Single Or Double End | Single |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; K; M |
| UNSPSC Code | 23241614 |
