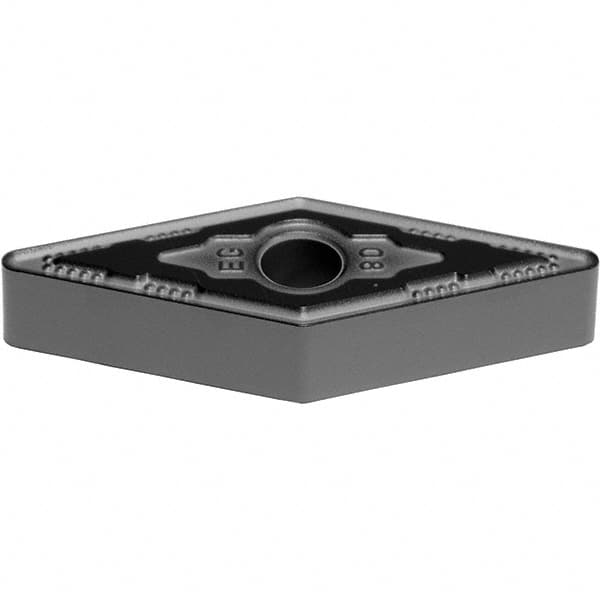

Sumitomo - VNMG331 EEG Grade AC5015S Carbide Turning Insert - TiAlSiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.0156" Corner Radius
Item #: 15225725
Brand: Sumitomo
Model #: 19T5CMX
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC5015S |
| Coating | TiAlSiN |
| Material Grade | S10 |
| Chip Breaker | EEG |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Manufacturers Catalog Number | VNMG331EEG-AC5015S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Diamond |
