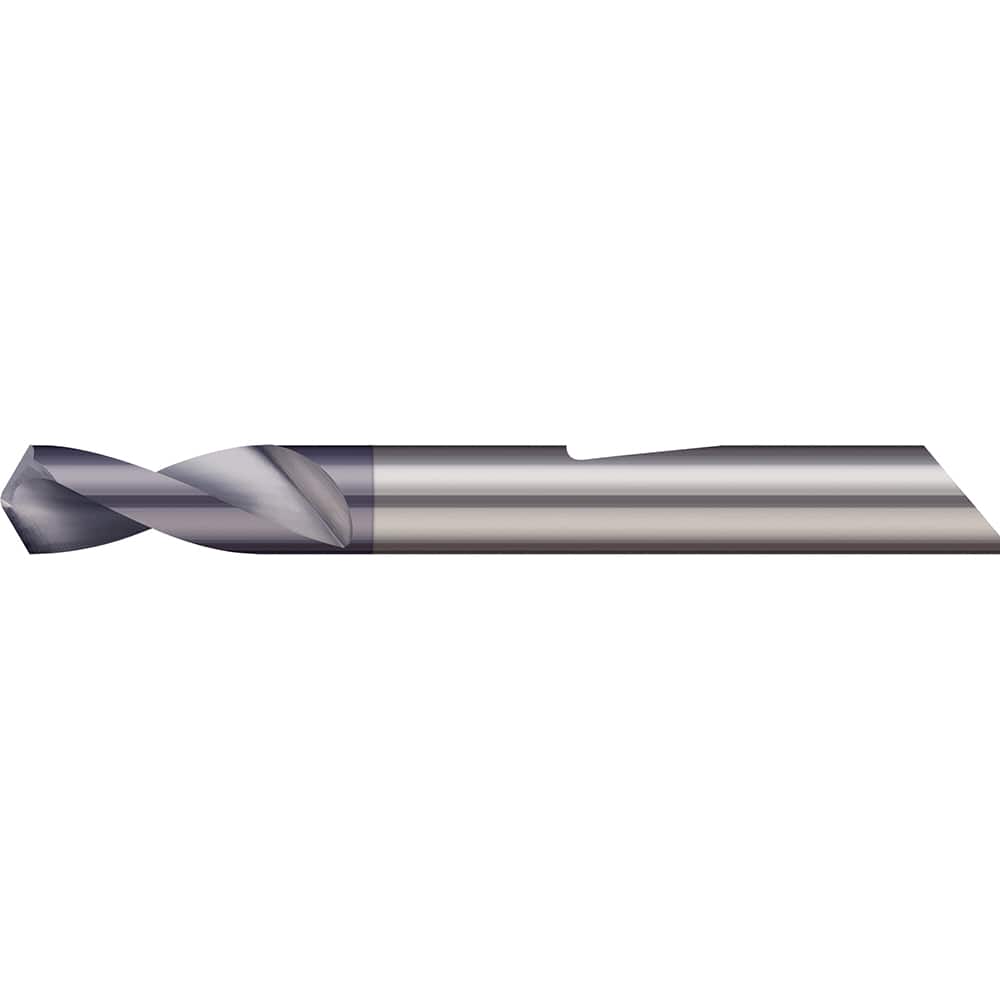

90° 3.5433″ Diam 1-1/2″ OAL 2-Flute Solid Carbide Spotting Drill AlTiN Finish, 0.06″ Flute Length, 3/16″ Shank Diam, Series QSPD
Item #: 15278658
Brand: Micro 100
Model #: QSPD-020-090X
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Decimal Inch) | 0.0200 |
| Overall Length (Inch) | 1-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | QSPD |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Length (Decimal Inch) | 0.0600 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Micro-Quik |
| Tool Performance | High Performance |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0020 |
