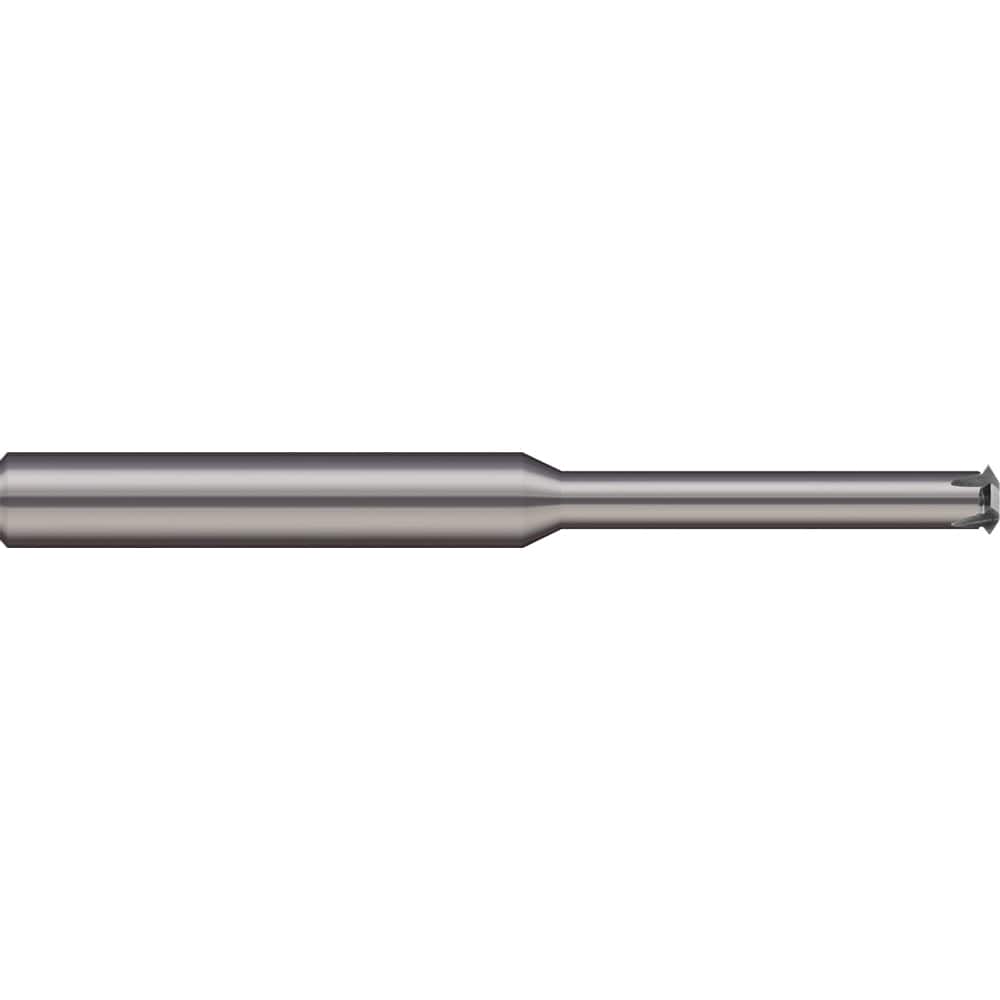

Micro 100 - Single Profile Thread Mills; Maximum Threads Per Inch: 12 ; Minimum Threads Per Inch: 5 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 7/8 ; Cutting Diameter (Inch): 0.7200 ; Shank Diameter (Inch): 3/4
Item #: 15300049
Brand: Micro 100
Model #: TM-720-20
Product Specifications
Single Profile Thread Mills; Maximum Threads Per Inch: 12 ; Minimum Threads Per Inch: 5 ; Thread Type: Internal/External ; Minimum Nominal Diameter (Inch): 7/8 ; Cutting Diameter (Inch): 0.7200 ; Shank Diameter (Inch): 3/4
| Maximum Threads Per Inch | 12 |
| Minimum Threads Per Inch | 5 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | 7/8 |
| Cutting Diameter (Inch) | 0.7200 |
| Shank Diameter (Inch) | 3/4 |
| Material | Solid Carbide |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 0.3600 |
| Neck Length (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 4.00000 |
| Overall Length (Inch) | 4 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | Uncoated |
