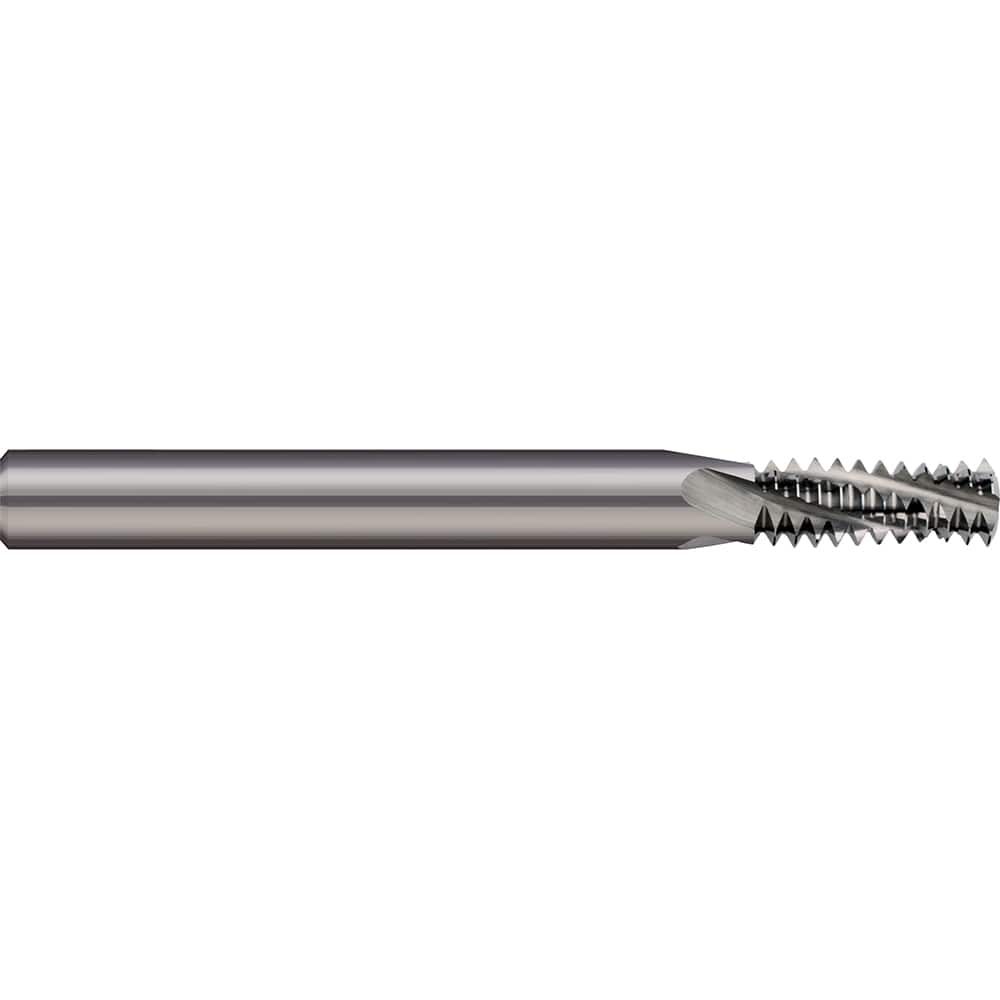

Micro 100 - M4.5x0.75 Internal/External 0.75mm Pitch 6mm Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15300528
Brand: Micro 100
Model #: TMM-045075
Product Specifications
| Pitch (mm) | 0.75 |
| Material | Solid Carbide |
| Thread Size (mm) | M4.5x0.75 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Number of Flutes | 3 |
| Cutting Diameter (mm) | 3.00 |
| Length of Cut (Decimal Inch) | 0.2362 |
| Length of Cut (mm) | 6.0000 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter (mm) | 4.50 |
| Overall Length (Decimal Inch) | 2.24410 |
| Overall Length (mm) | 57.0000 |
