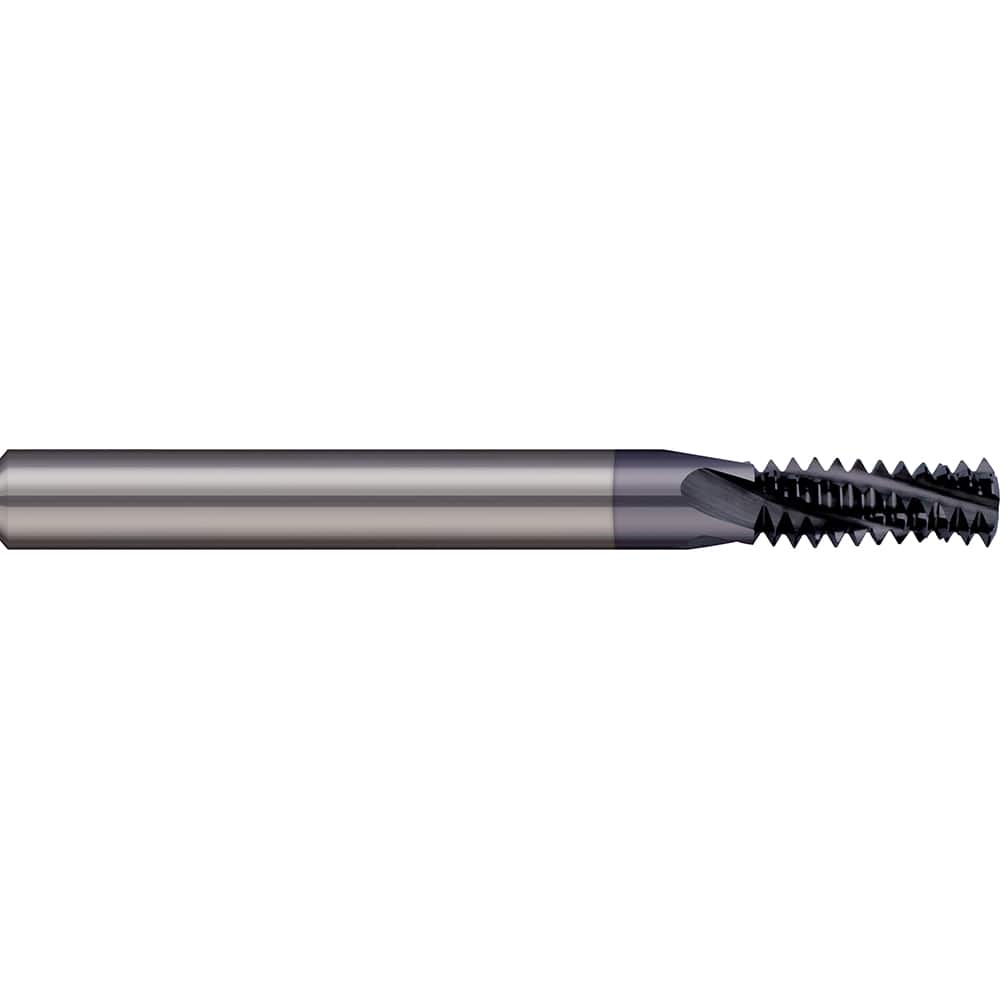

Micro 100 - 1/4-18 to 3/8-18 Internal/External 18 TPI 5/16" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15301609
Brand: Micro 100
Model #: TM-18NPTFX
Product Specifications
| Threads Per Inch | 18 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-18 to 3/8-18 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3050 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
