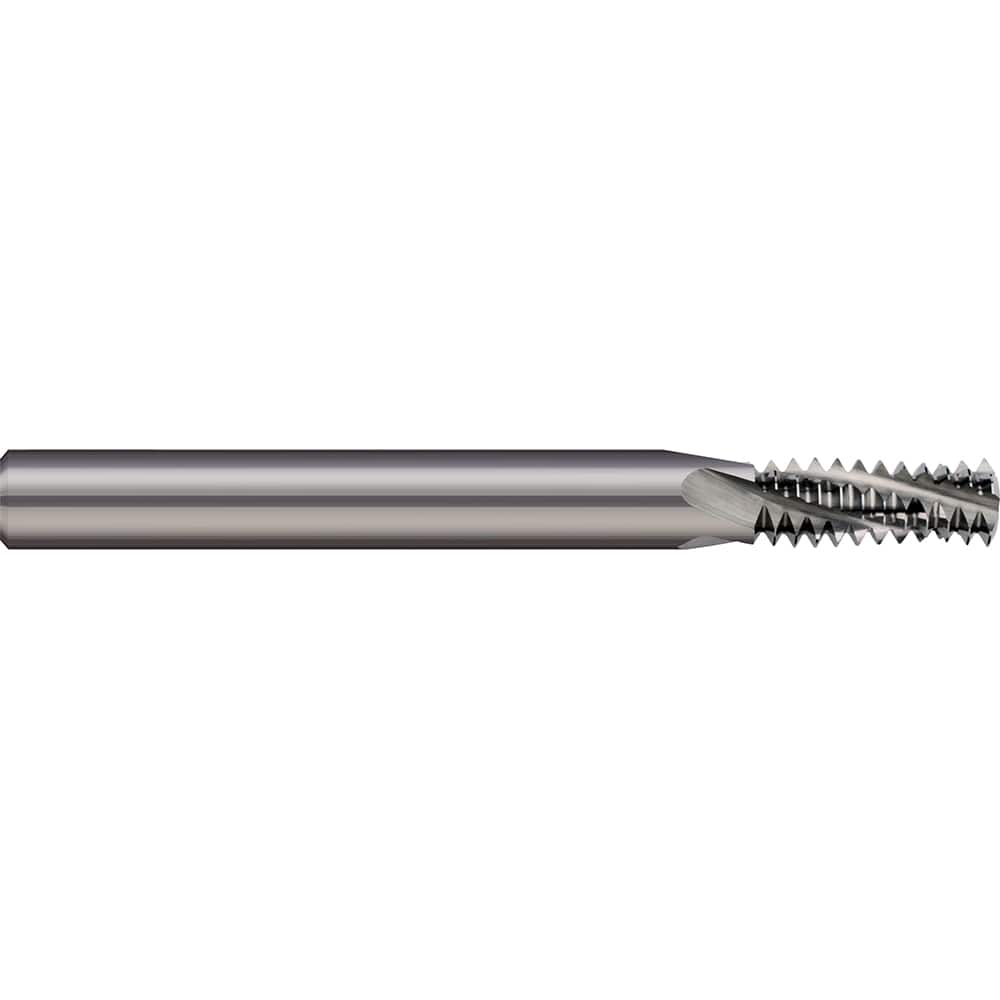

Micro 100 - 3/4-12 Internal/External 12 TPI 1/2" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15301948
Brand: Micro 100
Model #: TM-750-12
Product Specifications
| Threads Per Inch | 12 |
| Material | Solid Carbide |
| Thread Size (Inch) | 3/4-12 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.4950 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | 3/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.00000 |
| Overall Length (Inch) | 4 |
