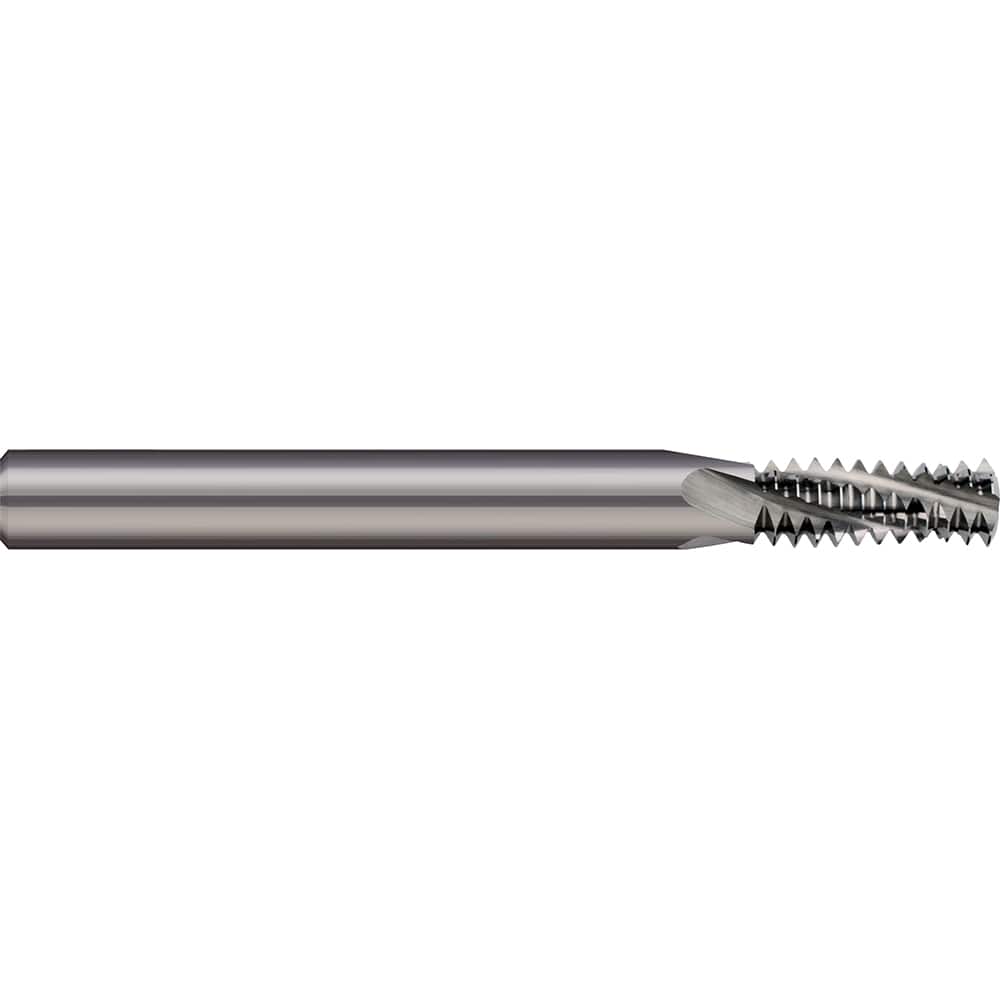

Micro 100 - 6-32 Internal/External 32 TPI 1/4" Shank 2-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15303209
Brand: Micro 100
Model #: TM-138-32
Product Specifications
| Threads Per Inch | 32 |
| Material | Solid Carbide |
| Thread Size (Inch) | 6-32 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 2 |
| Cutting Diameter (Decimal Inch) | 0.1000 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1/4 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | #6 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1380 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
