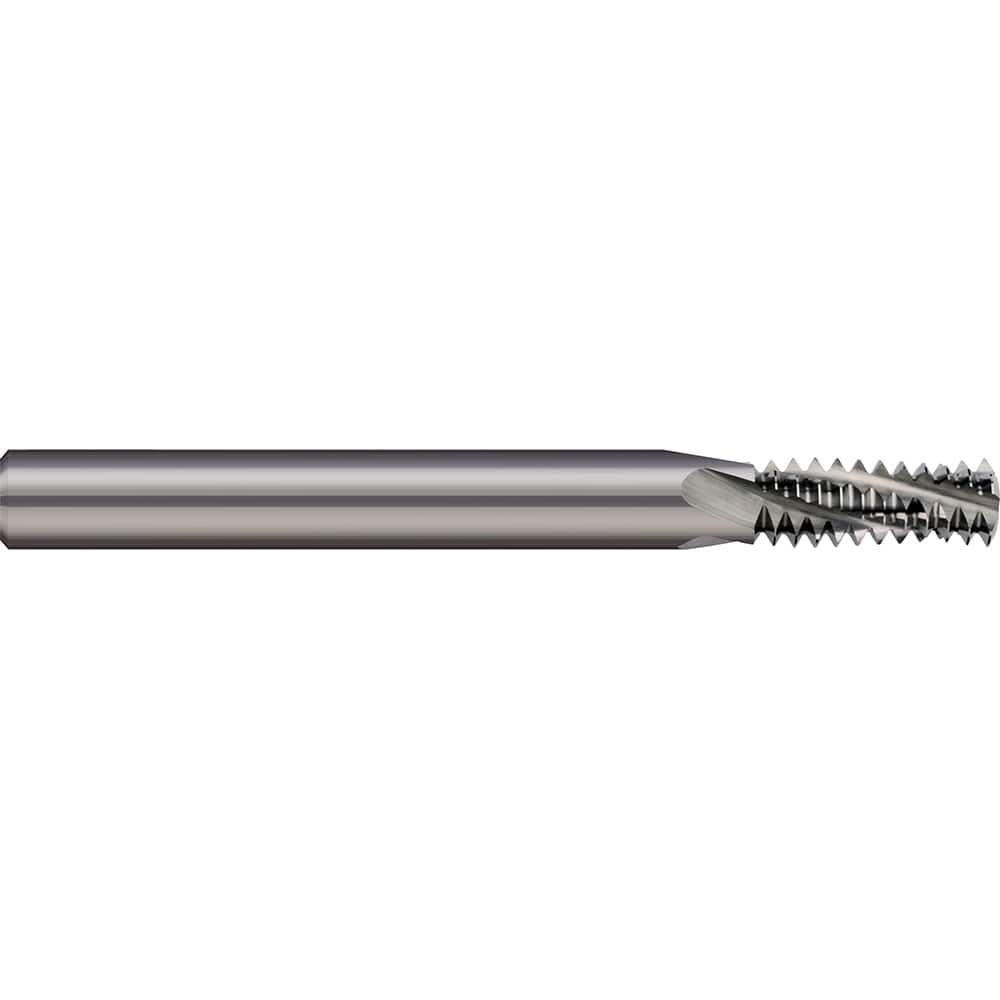

Micro 100 - 1/2-13 Internal/External 13 TPI 3/8" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15304199
Brand: Micro 100
Model #: TM-500-13
Product Specifications
| Threads Per Inch | 13 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/2-13 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3500 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | 1/2 |
| Minimum Nominal Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
