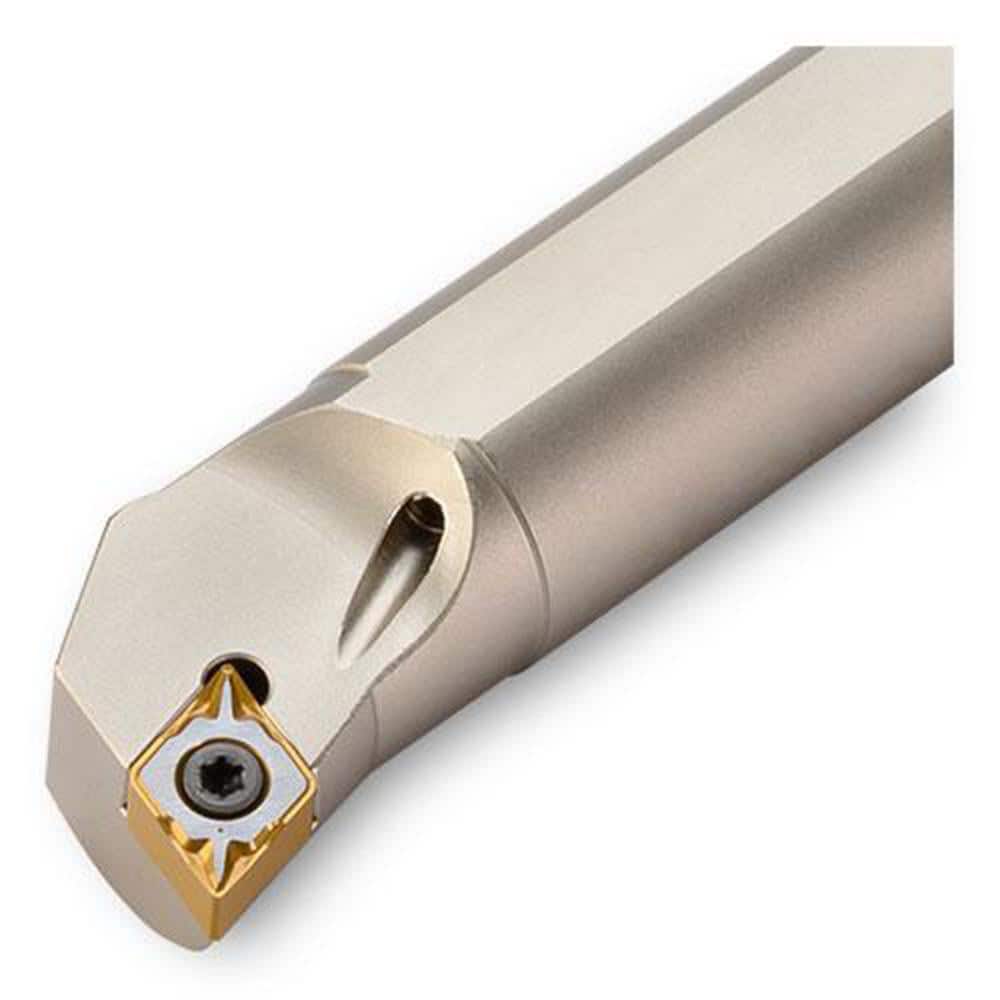

Indexable Boring Bar: A12S-SXQNR-3.5, 100.00° N/A Steel 10.0000″ OAL, Screw,
Item #: 15320914
Brand: Ingersoll Cutting Tools
Model #: 6213225
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Maximum Bore Depth (Inch) | 3 |
| Toolholder Style | SXQNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 10.00 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | XN..2.730.5FLP |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 100.00 |
| Series | A-SXQNR/L (Rhino Turn X) |
| Insert Inscribed Circle (Decimal Inch) | 0.4370 |
| Compatible Insert Thickness (Decimal Inch) | 0.2190 |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4930 |
| Coolant Through | Yes |
