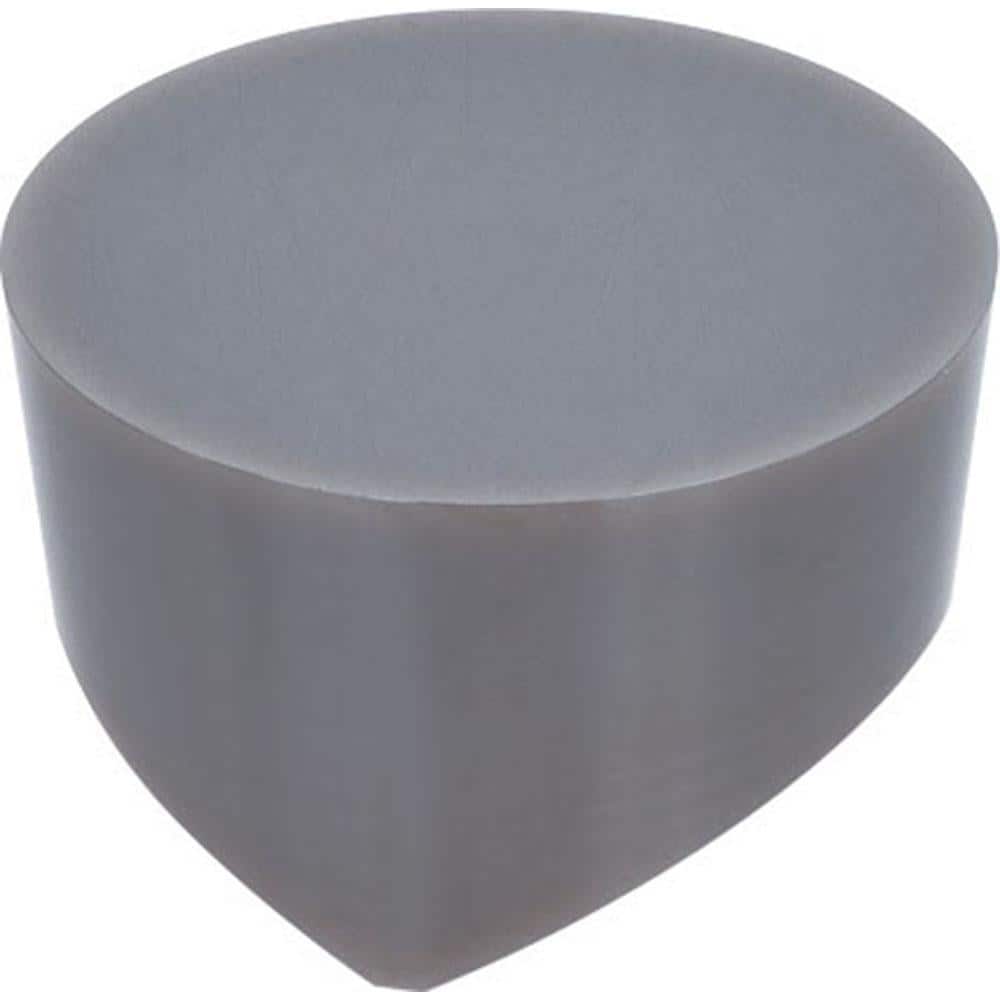

Turning Insert: RCGX350-T1 TS200, Ceramic Uncoated Finish, Neutral, 0.3750″ Long, 3/8″ Inscribed Circle, 0.1875″ Corner Radius, N/A Round, Series RCGX
Item #: 15336027
Brand: Tungaloy
Model #: 6148333
Product Specifications
| Insert Style | RCGX |
| Insert Shape Code | R |
| Insert Size Code | 35 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | TS200 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3130 |
| Corner Radius (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Relief Angle | 7 |
| Series | RCGX |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Inch) | 3/8 |
| Insert Length (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Chip Breaker | X |
| Coating/Finish | Uncoated |
