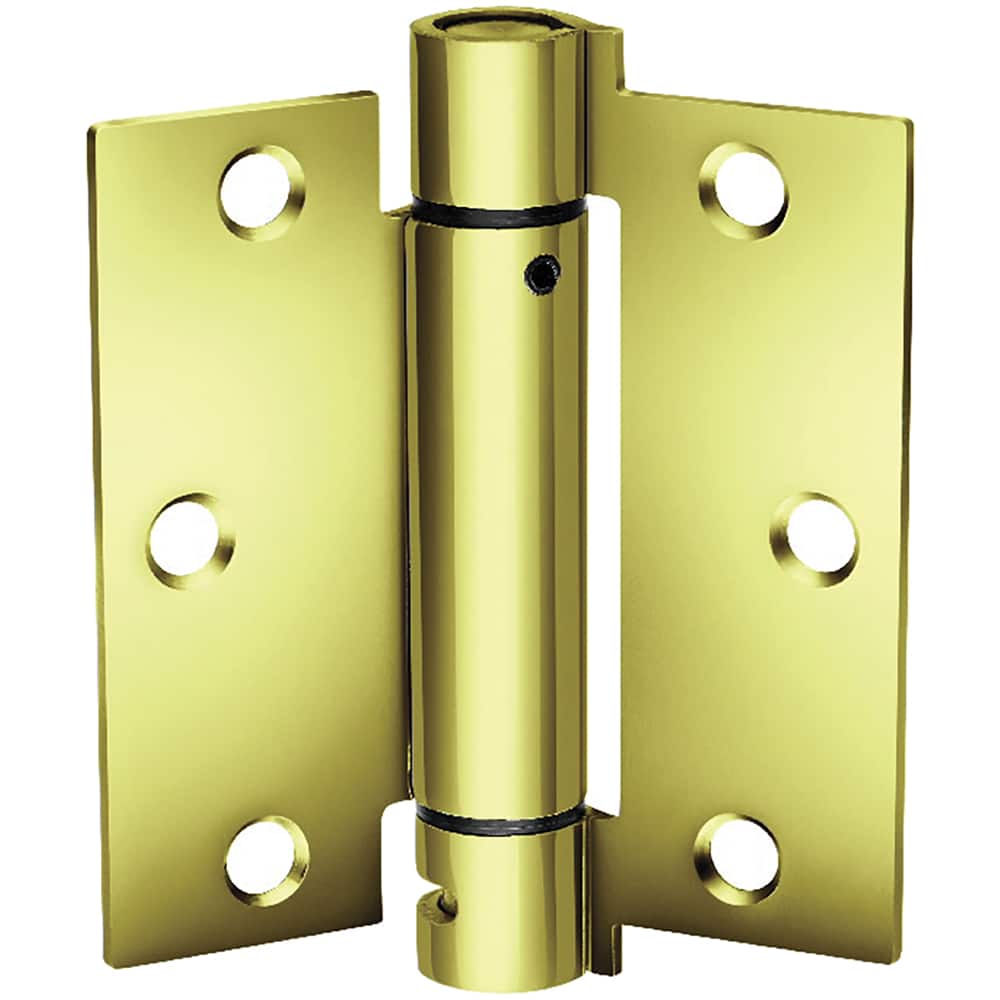

Standard-Weight Full-Mortise Single Acting Spring Hinge: 4-1/2″ Long, 0.134″ Thick, 8 Mounting Holes Steel
Item #: 15626252
Brand: Yale
Model #: 086141
Product Specifications
| Type | Standard-Weight Full-Mortise Single Acting Spring Hinge |
| Length (Decimal Inch) | 4.5000 |
| Length (Inch) | 4-1/2 |
| Width (Inch) | 4-1/2 |
| Width (Decimal Inch) | 4.5000 |
| Material | Steel |
| Finish/Coating | US3 |
| Pin Diameter | 1 |
| Thickness (Decimal Inch) | 0.1340 |
| Thickness (mm) | 3 |
| Thickness | 0.1340 |
| For Use With | Medium Frequency Doors; Standard Weight |
| Minimum Door Thickness (Decimal Inch) | 1.750 |
| Minimum Door Thickness (Inch) | 1-3/4 |
| Hand | Non-Handed |
| Number of Holes | 8.000 |
| Leaf Height | 4-1/2 |
| Load Capacity (Lb.) | 250.000 |
| Number of Knuckles | 3.000 |
