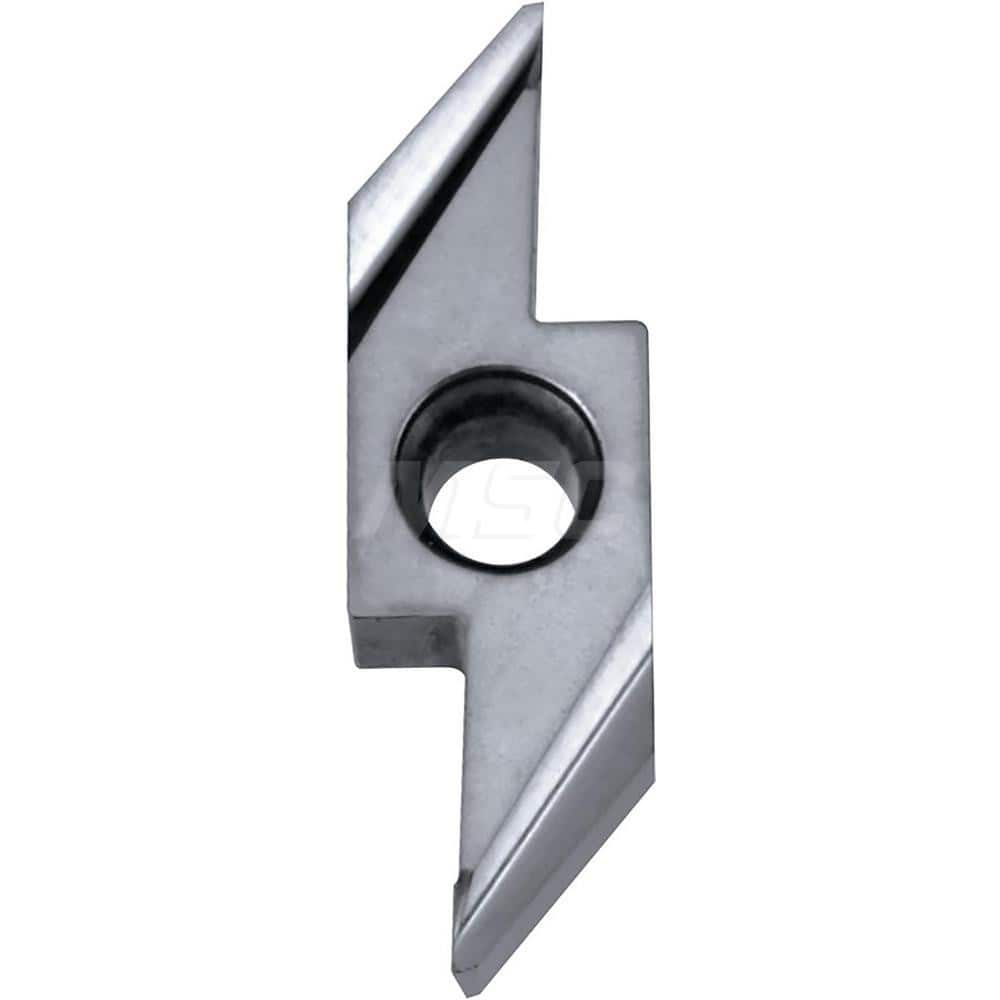

Kyocera ABW 23R5015 KW10 Grade Uncoated Carbide, 15 Degree, Irregular, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron
Item #: 15629611
Brand: Kyocera
Model #: TWE01196
Product Specifications
| Insert Style | ABW |
| Insert Shape Code | A |
| Insert Size Code | 235015 |
| Insert Shape | Irregular |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.00 |
| Inscribed Circle (mm) | 7.00 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Relief Angle | 15 |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9213 |
| Primary Workpiece Material | S; N |
| Secondary Workpiece Material | K |
| Iso Code | ABW23R5015 |
| Manufacturers Catalog Number | ABW23R5015KW10 |
| Style | ABW |
| Width (Decimal Inch - 4 Decimals) | 0.2756 |
| Full Radius | No |
| Coating/Finish | WC; Co |
| Multi-Use Application | Back Turning |
