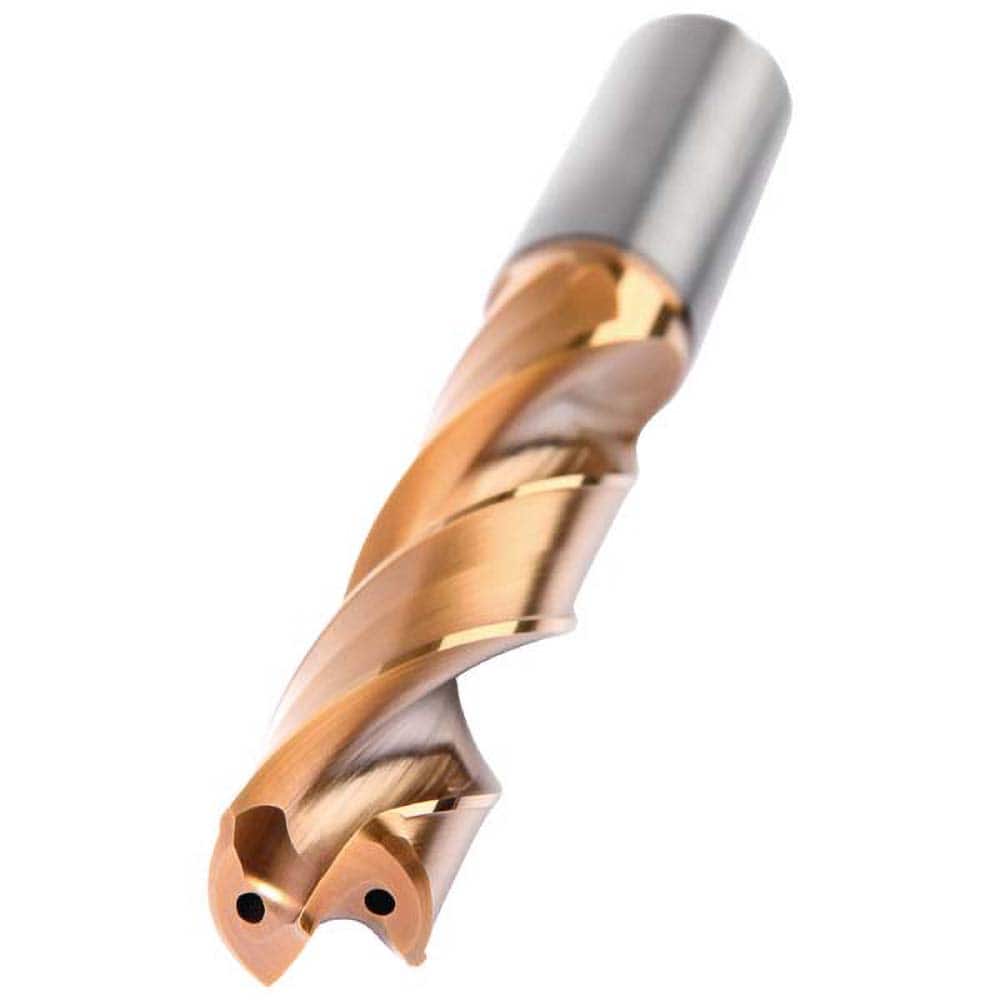

Kennametal - Taper Length Drill Bits; Drill Bit Size (mm): 5.40 ; Drill Bit Size (Decimal Inch): 0.2126 ; Drill Point Angle: 143 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: AlTiN ; Flute Type: Helical Flute
Item #: 15661044
Brand: Kennametal
Model #: 6783381
Product Specifications
Taper Length Drill Bits; Drill Bit Size (mm): 5.40 ; Drill Bit Size (Decimal Inch): 0.2126 ; Drill Point Angle: 143 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: AlTiN ; Flute Type: Helical Flute
| Drill Bit Size (mm) | 5.40 |
| Drill Bit Size (Decimal Inch) | 0.2126 |
| Drill Point Angle | 143 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | AlTiN |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 56.00 |
| Overall Length (mm) | 94.0000 |
| Shank Diameter (mm) | 6.0000 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 48.00 |
| Shank Length (mm) | 36.000 |
| Drill Point Length (mm) | 1.58 |
| Series/List | B256 |
| Drill Bit Grade | KCK10A |
