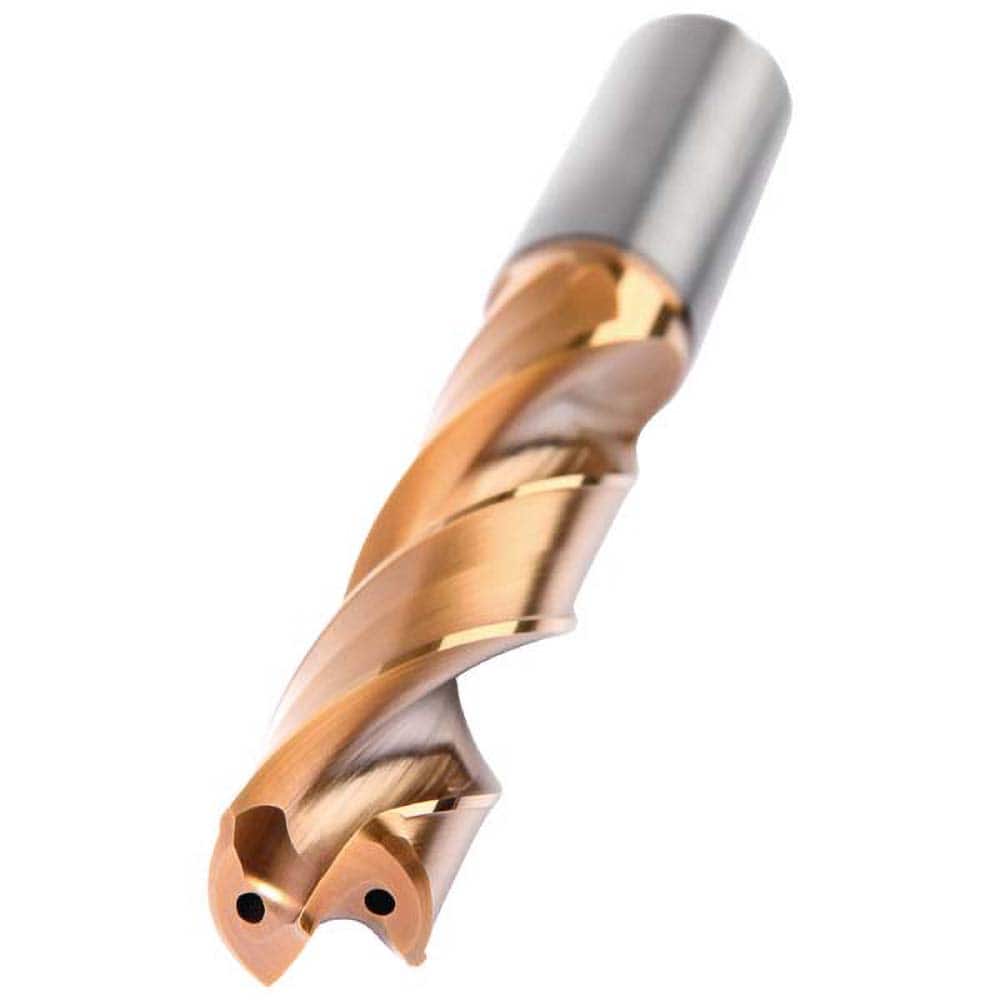

Jobber Length Drill Bit: 0.257″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15663651
Brand: Kennametal
Model #: 6783494
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2570 |
| Drill Bit Size (Letter) | F |
| Drill Bit Size (mm) | 6.53 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 91.00 |
| Flute Length (mm) | 50.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 5/16 |
| Maximum Drilling Depth (mm) | 40.30 |
| Shank Length (Decimal Inch) | 1.5157 |
| Drill Point Length (mm) | 1.92 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
