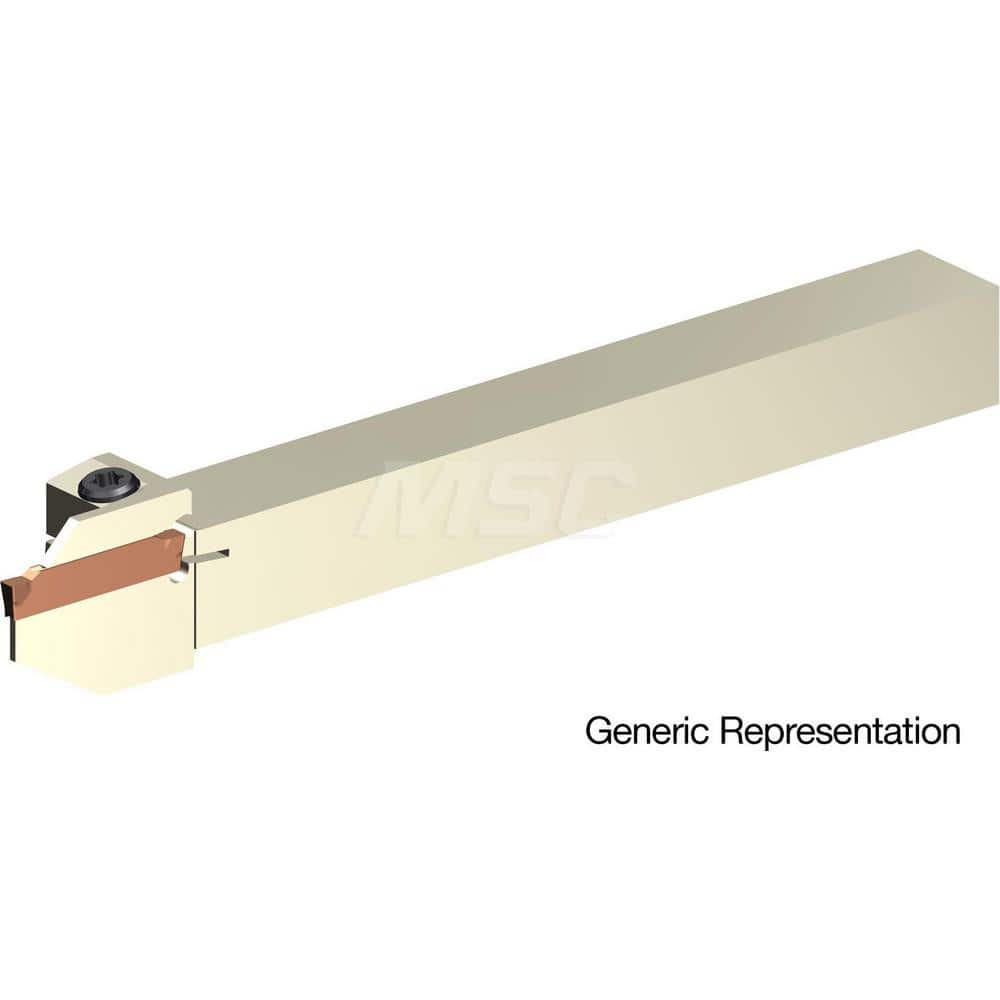

Indexable Cutoff Toolholder: 10 mm Max Depth of Cut, 20 mm Max Workpiece Dia, Right Hand 10 mm Shank Height, 10 mm Shank Width, Uses GCMN Inserts, Series GND
Item #: 15824154
Brand: Sumitomo
Model #: 2600AWW
Product Specifications
| Hand of Holder | Right |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Workpiece Diameter (mm) | 20.00 |
| Toolholder Style | GND |
| Compatible Insert Size Code | GCMN |
| Overall Length (mm) | 120.00 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Series | GND |
| Head Length (mm) | 18.00 |
| Maximum Insert Width (mm) | 1.50 |
