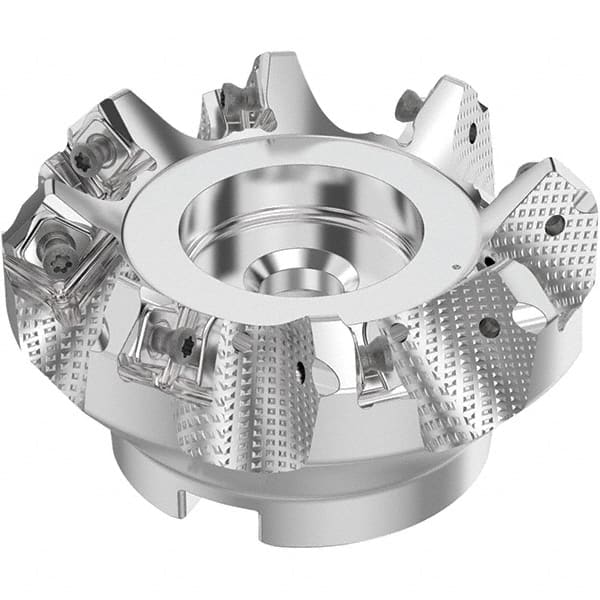

Seco - 3" Cut Diam, 1" Arbor Hole, 0.236" Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 8 Inserts, SN.. Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series R220.54
Item #: 15879281
Brand: Seco
Model #: 03213645
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 48 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SN.. |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 8 |
| Cutting Rake Angle | -6 |
| Hub Diameter (Decimal Inch) | 2.4410 |
| Keyway Width (Decimal Inch) | 0.3820 |
| Maximum Body Diameter (Decimal Inch) | 3.5830 |
| Maximum RPM | 6700 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Overall Diameter (Decimal Inch) | 3.5830 |
| Complete Insert Compatibility | SN..14..ANTR |
| Toolholder Material | Steel |
