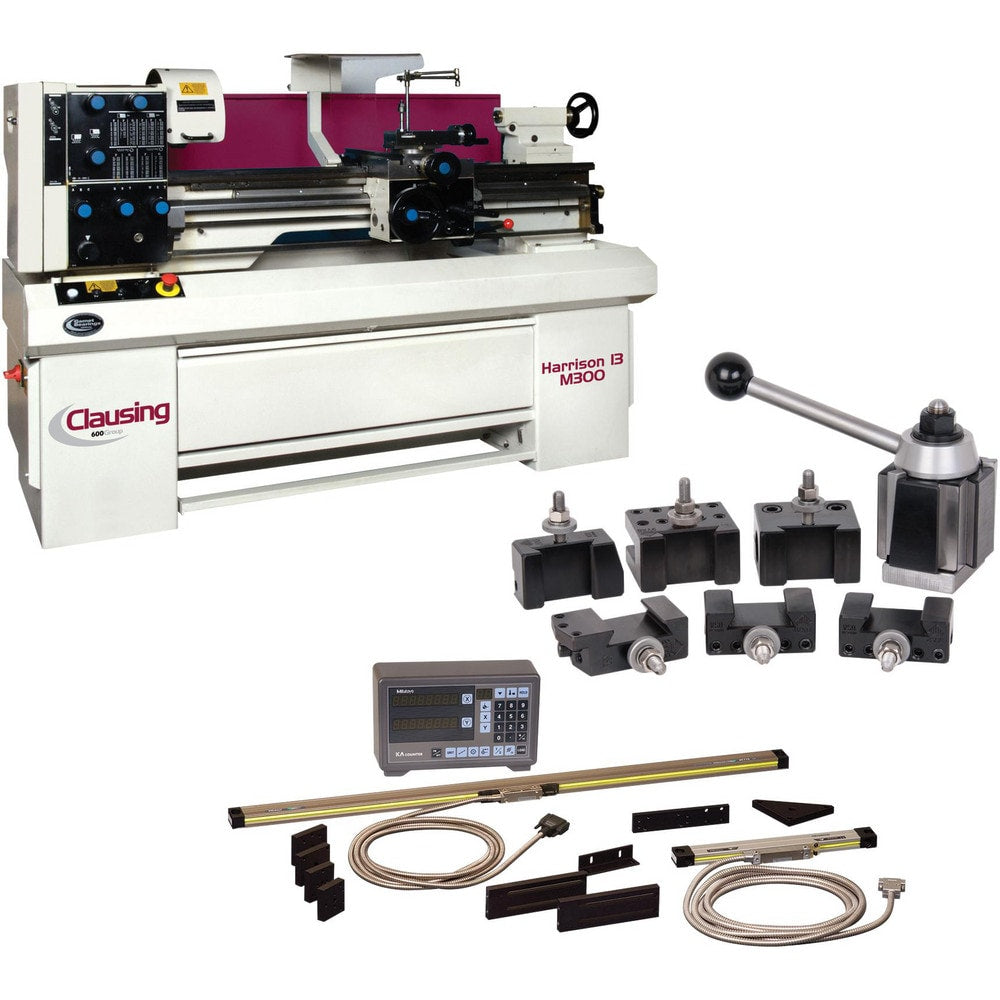

Brand: Clausing / Part #: 4123703/0906007
Item #: 94187374
Brand: Clausing
Model #: 4123703/0906007
Product Specifications
| Phase | Three |
| Spindle Speed Control | Geared Head |
| Bed Width (Inch) | 12.5197 |
| Distance Between Centers (Inch) | 40 |
| Gap Length (Decimal Inch) | 4.6250 |
| Cross Slide Travel (Inch) | 7-1/2 |
| Cross Slide Travel (Decimal Inch) | 7.5000 |
| Swing (Inch) | 13 |
| Spindle Bore Diameter (Inch) | 1-9/16 |
| Minimum Spindle Speed | 40 |
| Spindle Nose Designation | D1-4 |
| Maximum Spindle Speed | 2500 |
| Minimum Metric Pitch (Decimal Inch) | 0.2000 |
| Number of Inch Threads | 35 |
| Spindle Taper Size | 3MT |
| Tailstock Taper Size | 3MT |
| Tailstock Travel (Decimal Inch) | 4.3125 |
| Maximum Threads Per Inch | 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0010 |
| Overall Depth (Inch) | 40 |
| Overall Length (Inch) | 84 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.4000 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.001000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0800 |
| Swing Over Cross Slide (Decimal Inch) | 8.2500 |
| Swing Over Cross Slide (Inch) | 8-1/4 |
| Swing Over Gap (Inch) | 19 |
| Swing Over Gap (Decimal Inch) | 19.0000 |
