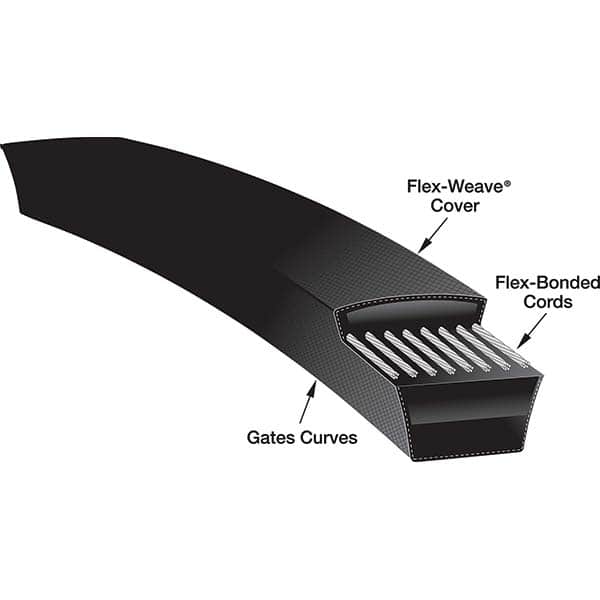

Gates - Belts Belt Style: V-Belts Belt Section: B
Item #: 17485731
Brand: Gates
Model #: 90032046
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: B ; Outside Length: 49.100 (Decimal Inch); Outside Length: 1247.14 (mm); Belt Width: 21/32 (Inch); Belt Width: 0.680 (Decimal Inch)
| Belt Style | V-Belts |
| Belt Section | B |
| Outside Length (Decimal Inch) | 49.100 |
| Outside Length (mm) | 1247.14 |
| Belt Width (Inch) | 21/32 |
| Belt Width (Decimal Inch) | 0.680 |
| Belt Width (mm) | 17.27 |
| Belt Number | B46 |
| Belt Internal Length (Decimal Inch) | 46.45 |
| Belt Internal Length (mm) | 1179.83 |
| Material | Gates Rubber Compound |
| Belt Height | 0.422 |
| Color | Black |
| Style | Banded V-Belt |
| Maximum Temperature (F) | 180 |
