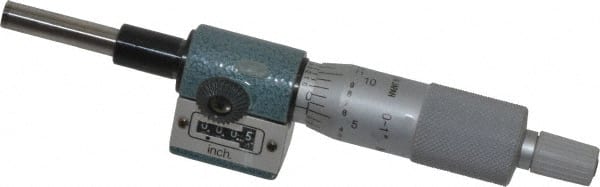

Mitutoyo - 1 Inch, 18mm Ratchet Stop Thimble, 6.35mm Diameter x 27mm Long Spindle, Digital Counter Mechanical Micrometer Head
Item #: 06245617
Brand: Mitutoyo
Model #: 250-312
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Inch) | 1 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Thimble Diameter (mm) | 18.00 |
| Digital Counter | Yes |
| Spindle Diameter (mm) | 6.35 |
| Spindle Length (mm) | 27.00 |
| Overall Length (mm) | 135.8 (Open); 160.8 (Closed) |
| Graduation (Decimal Inch) | 0.0001 |
| Stem Diameter (Decimal Inch) | 0.3750 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (Decimal Inch) | 0.000100 |
| Thimble Type | Ratchet Stop |
| Stem Length (mm) | 15.00 |
| Reverse Reading | No |
| Clamp Nut Supplied | No |
| Measuring Face Material | Carbide |
| Finish/Coating | Chrome Plated |
| Number of Extension Rods | 0 |
