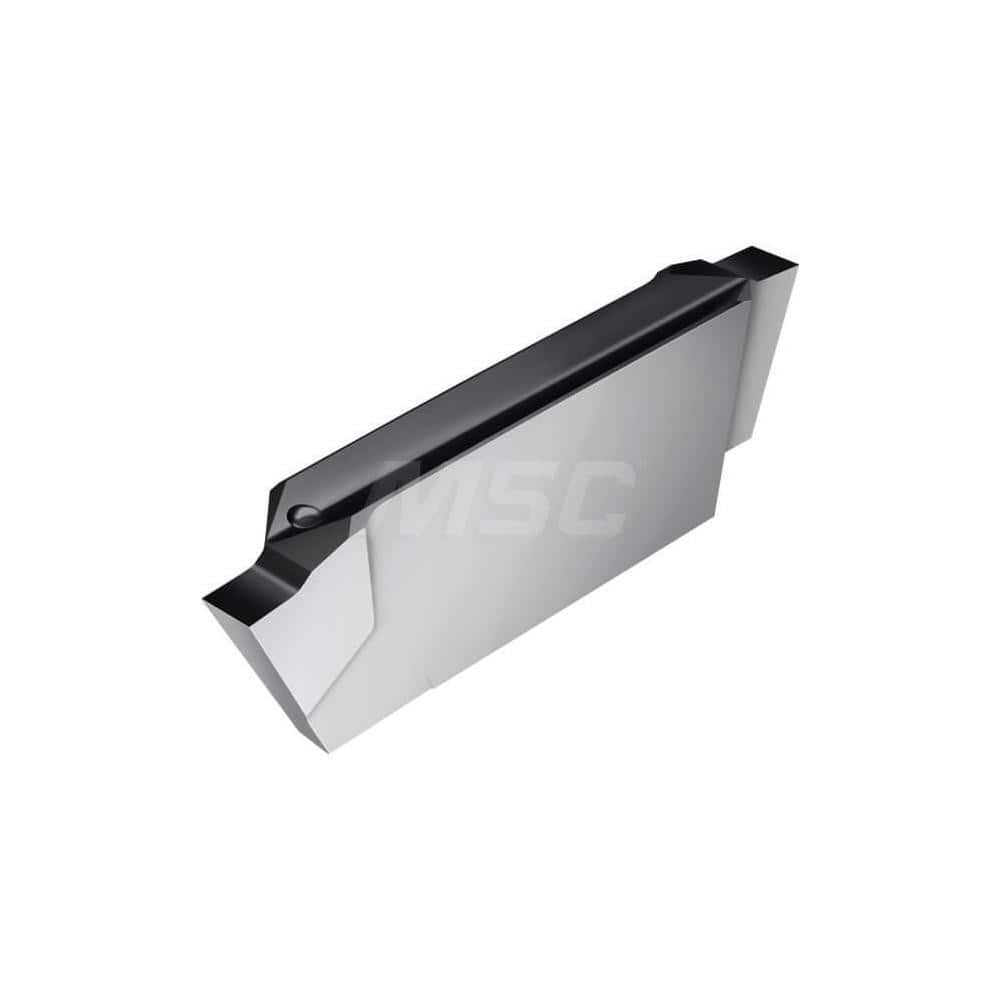

Grooving Insert: GX09GD8 WSM23S, Solid Carbide Al Finish, Left Hand, 0.055″ Cutting Width, Series Tiger-tec Silver
Item #: 16062135
Brand: Walter
Model #: 7350902
Product Specifications
| Insert Style | GX09 |
| Insert Size Code | 1E140L00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.0550 |
| Maximum Depth of Cut (mm) | 1.53 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0040 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX091E140L00GD8 WSM23S |
| Iso Code | GX091E140L00GD8 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX09-1E140L00-GD8 WSM23S |
| Chip Breaker | GD8 |
| Coating/Finish | Al |
