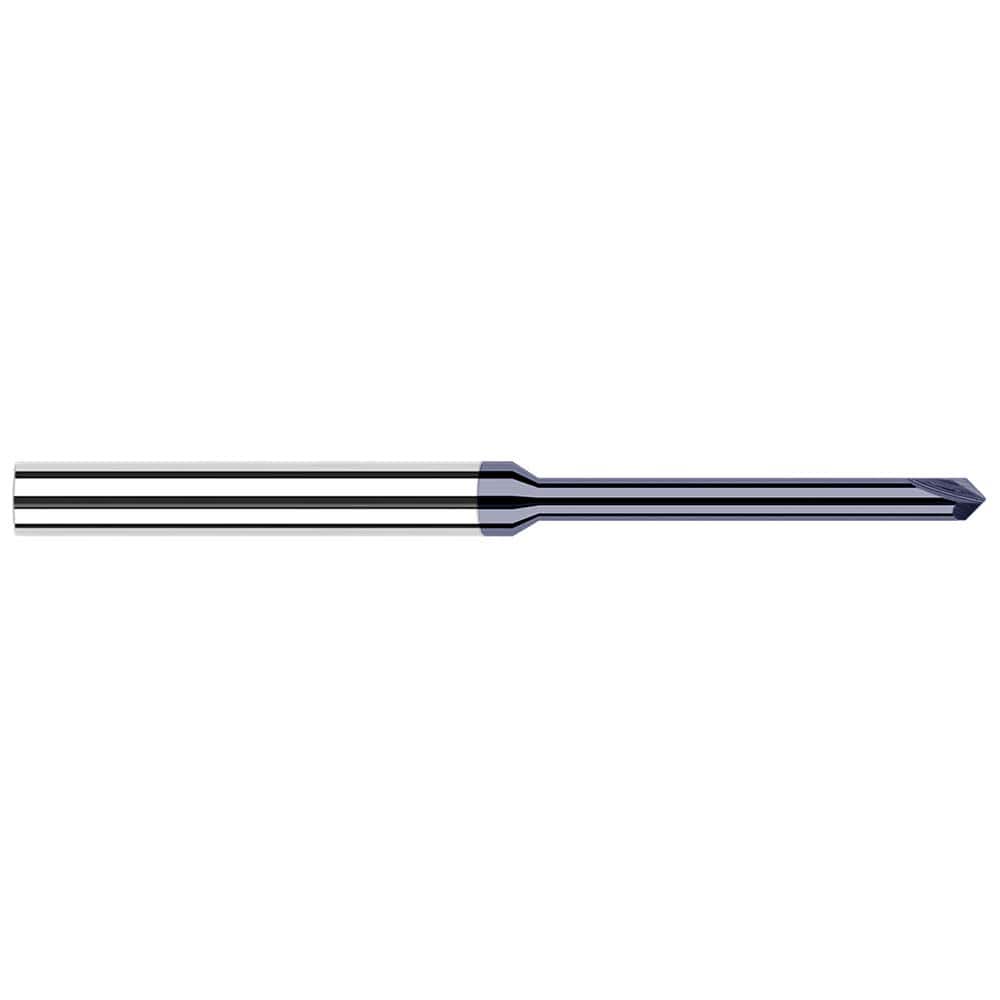

Chamfer Mill: 0.02″ Dia, 2 Flutes, Solid Carbide 2-1/2″ OAL, 1″ Shank Dia, AlTiN Coated
Item #: 16174534
Brand: Harvey Tool
Model #: 765545-C3
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.0200 |
| Included Centerline Angle | 90.00 |
| Included Side Angle | 90.00 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Chamfer Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0100 |
| Coating/Finish | AlTiN |
| Single Or Double End | Single |
