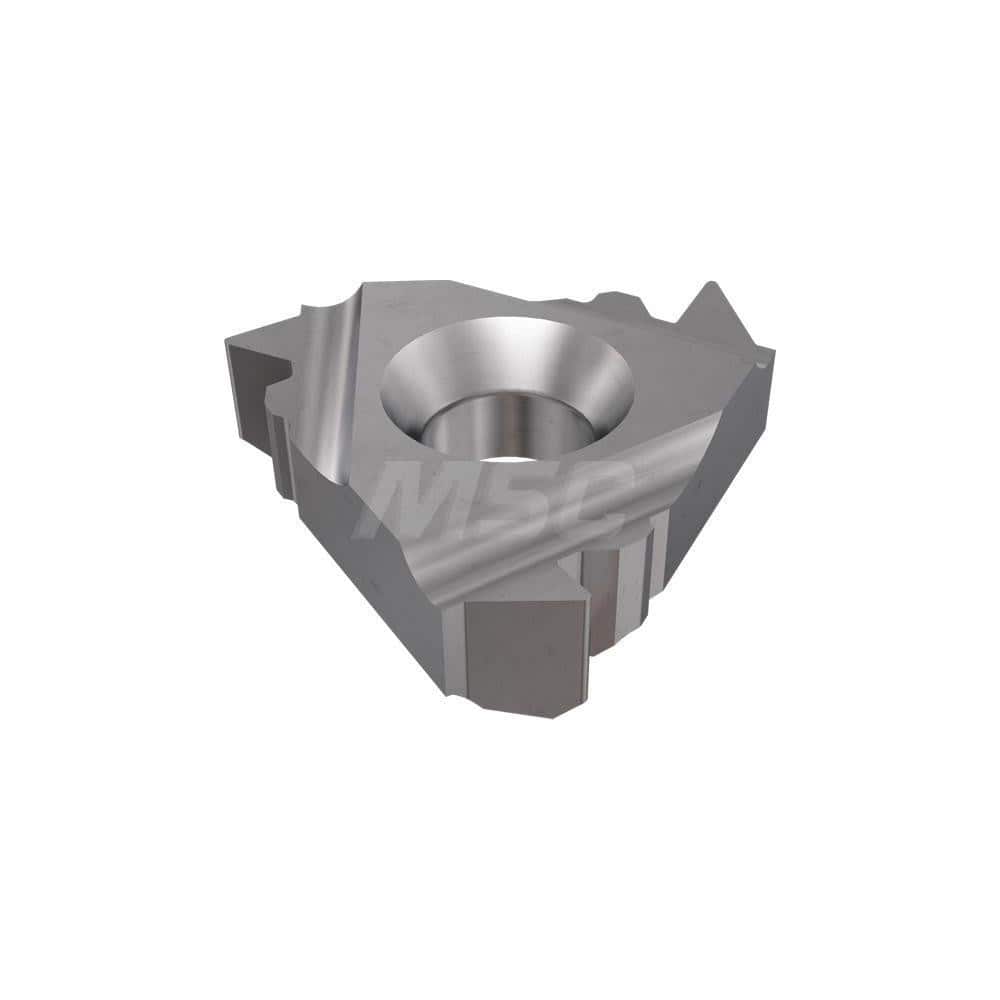

Laydown Threading Inserts; Insert Style: 22UIR; Insert Size Code: 22; Insert Material: Solid Carbide; Manufacturer Grade: IC908; Threads Per Inch: 4; Thread Type: Internal; Thread Standard: American Buttress; Insert Hand: Right Hand; Included Angle: 60; C
Item #: 16180010
Brand: Iscar
Model #: 5990175
Product Specifications
| Insert Style | 22UIR |
| Insert Size Code | 22 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Thread Type | Internal |
| Thread Standard | American Buttress |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | Z |
| Series | IR |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0161 |
| Teeth Per Inch | 4.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1900 |
| Coating/Finish | Coated |
