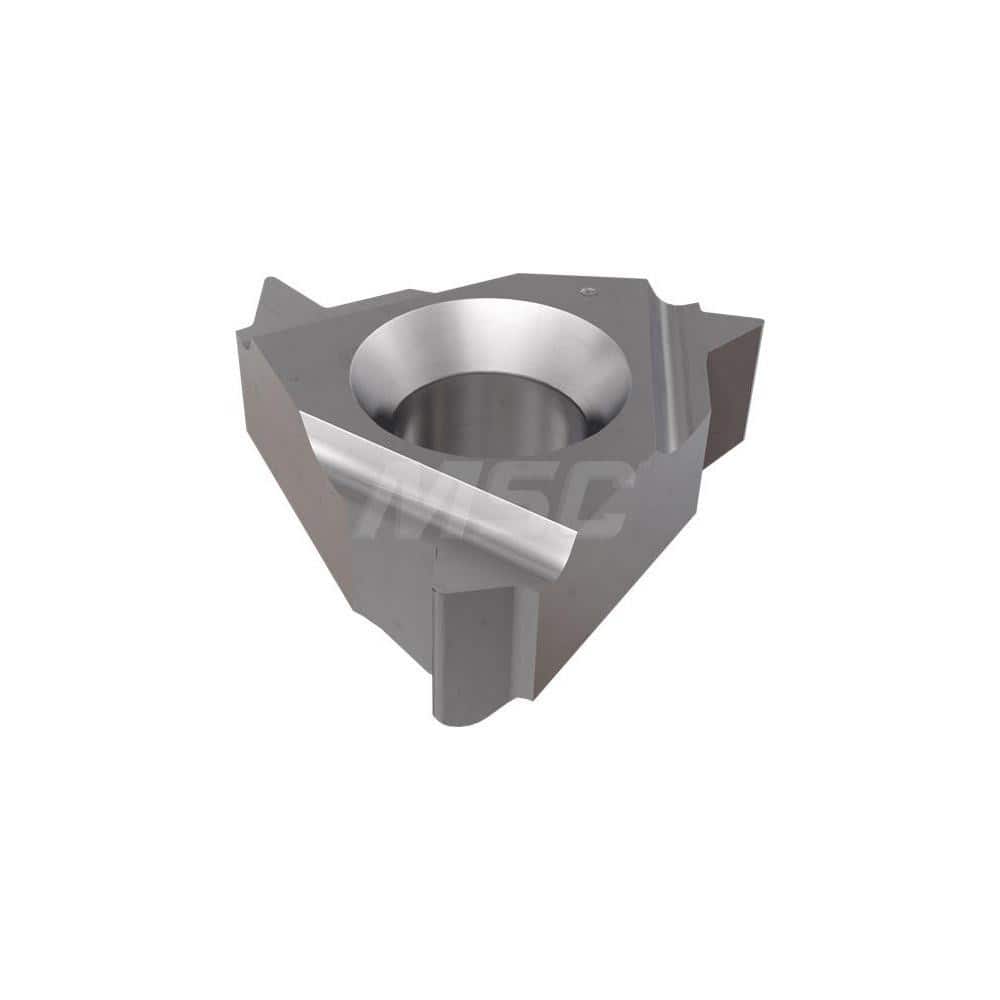

Laydown Threading Inserts; Insert Style: 16IL; Insert Size Code: 16; Insert Material: Solid Carbide; Manufacturer Grade: IC908; Threads Per Inch: 24; Thread Type: Internal; Thread Standard: UN; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker: Z;
Item #: 16180382
Brand: Iscar
Model #: 3409703
Product Specifications
| Insert Style | 16IL |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Thread Type | Internal |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | Z |
| Series | IL |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Teeth Per Inch | 24.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | Coated |
