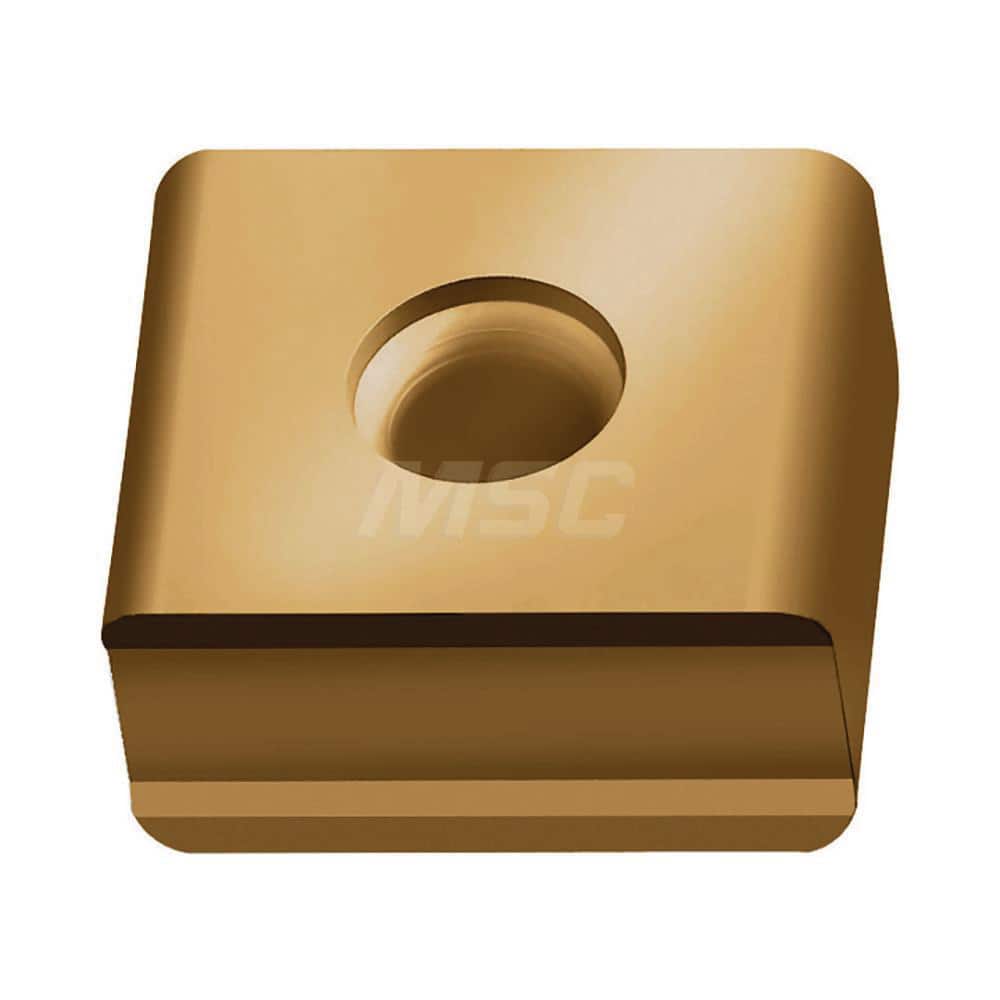

Milling Insert: LNMU150812-F57T WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16278475
Brand: Walter
Model #: 8112878
Product Specifications
| Insert Style | LNMU |
| Insert Size Code | 15 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | LNMU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 15.00 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Cast Iron |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | LNMU150812-F57T WSP45G |
| Chip Breaker | F57T |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.3150 |
