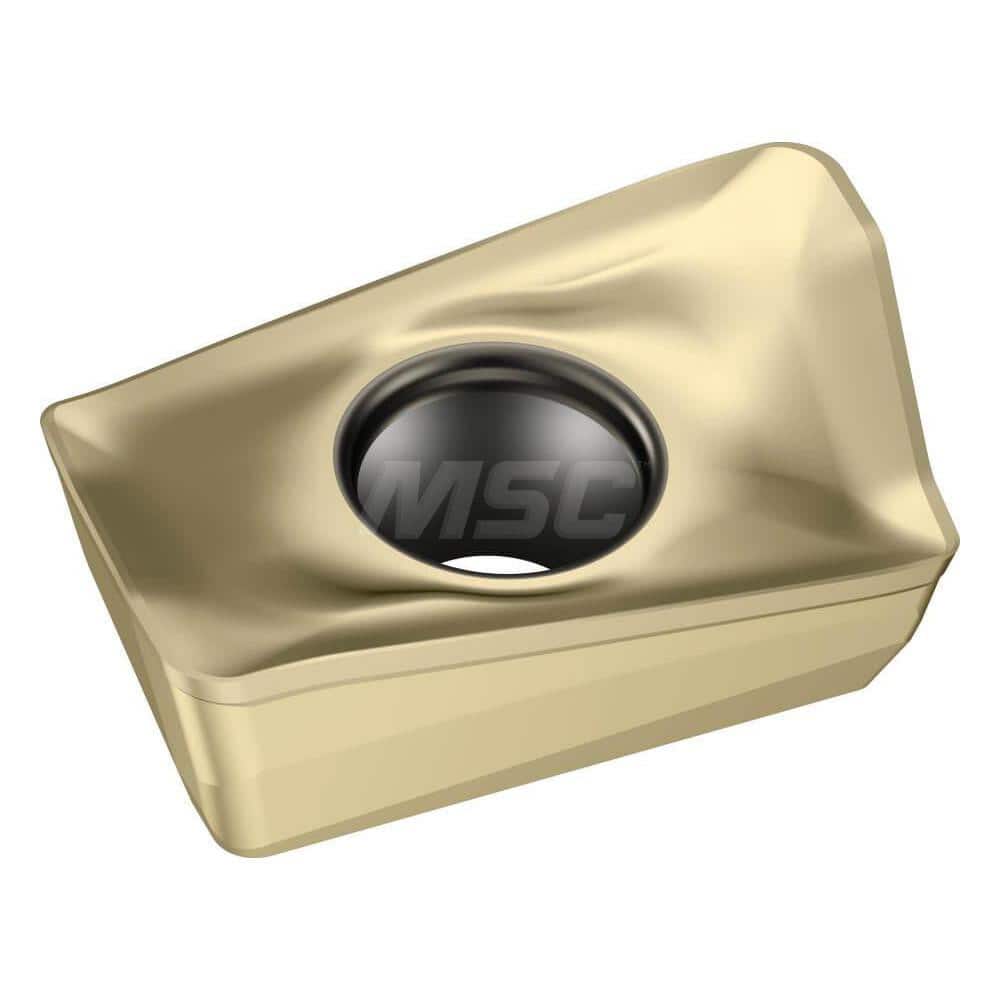

Milling Insert: ADGT1606PER-F56 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16279143
Brand: Walter
Model #: 8112813
Product Specifications
| Insert Style | ADGT |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.4250 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | ADGT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (mm) | 17.50 |
| Insert Shape | Parallelogram |
| Primary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ADGT1606PER-F56 WSP45G |
| Chip Breaker | F56 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2420 |
