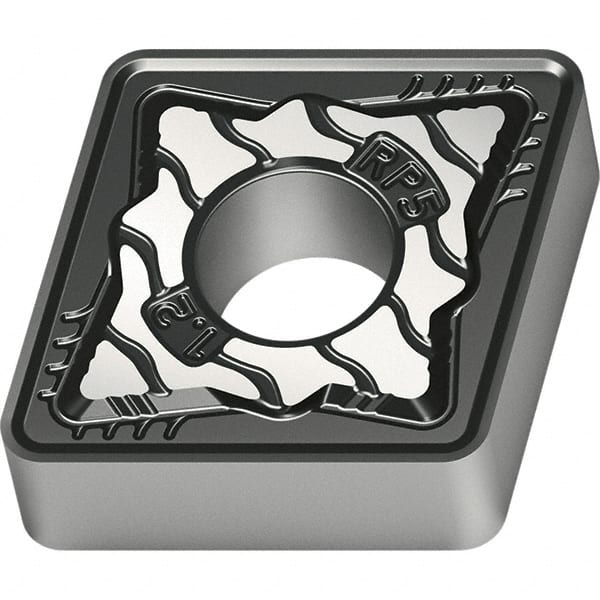

CNMG250924-RP5 WPP20S Turning Insert TiCN+Al2O3+(TiCN) Finish, Neutral, 25.79mm Long, 25.4mm Inscribed Circle, 2.4mm Corner Radius, 9.53mm Thick, 80° Rhombic 80, Series CNMG-RP5
Item #: 16357410
Brand: Walter
Model #: 8115709
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 866 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP20G |
| Hole Diameter (Mm) ( - 0 Decimals) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (mm) | 25.79 |
| Maximum Depth of Cut (Decimal Inch) | 1.0150 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness | 9.53 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.0150 |
| Insert Length (mm) | 25.79 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CNMG866RP5WPP20S |
| Iso Code | CNMG250924-RP5 WPP20S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6779946 |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | WPP20S |
| Chip Breaker | RP5 |
| Coating/Finish | TiCN; Al2O3 |
 | |
| MSC Part # | 16357410 |
| Mfr Part # | 8115709 |
| Country of OriginCountry of Origin is subject to change | Germany |
