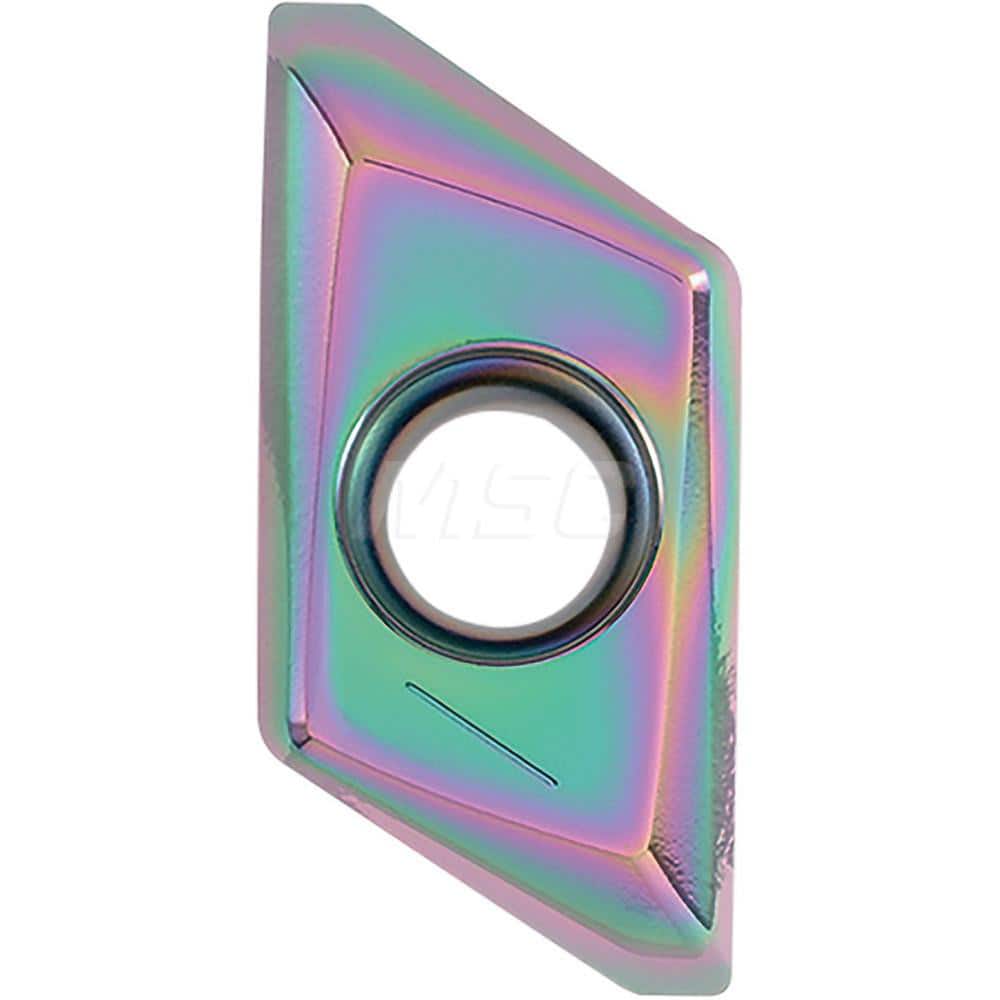

PARALLEL POS RAKE RH Carbide Milling Insert DLC Finish, 5.1mm Thick x 9.9mm Wide
Item #: 16390833
Brand: Kyocera
Model #: TLE04893
Product Specifications
| Insert Style | KCGT |
| Insert Size Code | 130530 |
| Insert Size | 130530 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PDL025 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Insert Hand | Right Hand |
| Series | MEAS-Series |
| Coating Process | DLC |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | KCGT130530FRALPDL025 |
| Iso Code | KCGT130530FR-AL |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | KCGT130530FRALPDL025 |
| Chip Breaker | FR-AL |
| Shape | Parallelogram |
| Insert Holding Method | Clamp Screw |
| Thickness (mm) | 5.10 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.3898 |
| Width (Mm - 2 Decimals) | 9.90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2008 |
