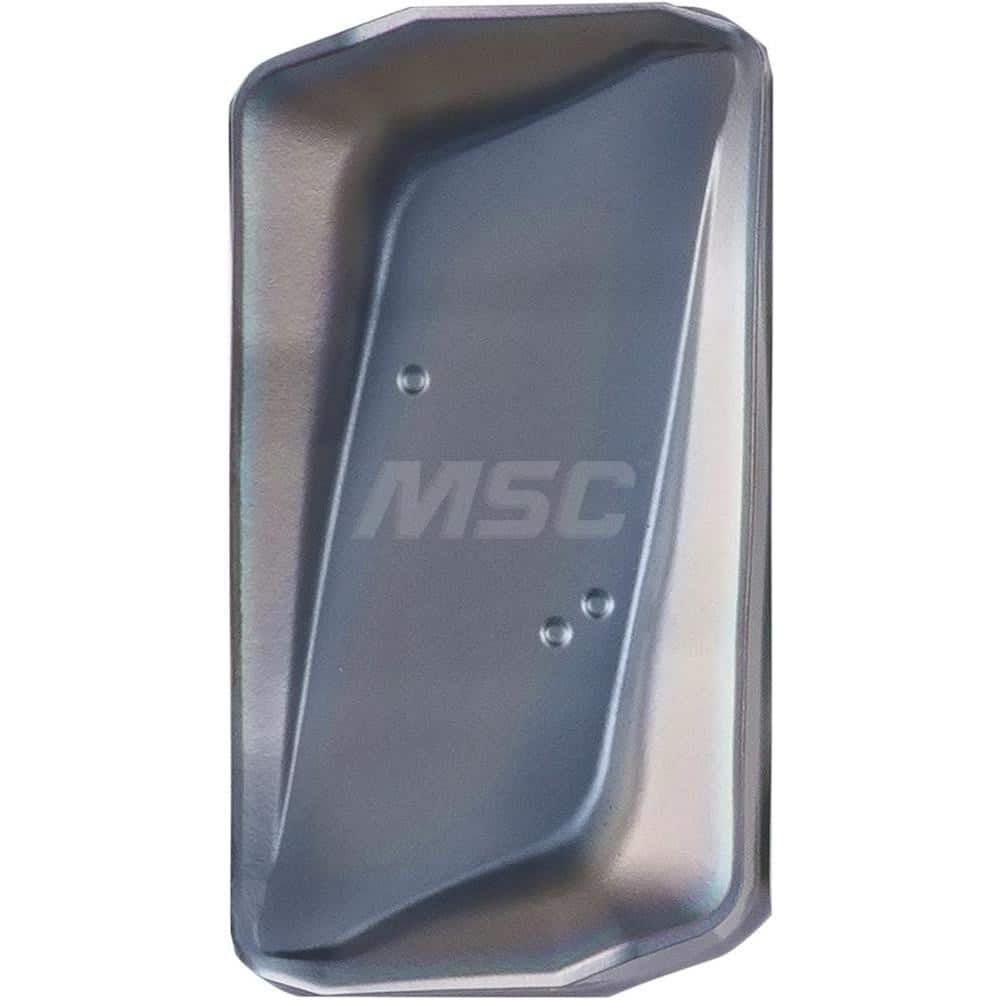

RECT POS RAKE RH Carbide Milling Insert Megacoat Nano Finish, 0.8976″ Long x 16.9mm Thick x 12.5mm Wide
Item #: 16391021
Brand: Kyocera
Model #: TLC40001
Product Specifications
| Insert Style | LOGU |
| Insert Size Code | 2216 |
| Insert Size | 2216 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Thickness Range (Decimal Inch) | 0.5000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Series | MFLN-Series |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.80 |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 22.80 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | LOGU2216PAERGMPR1535 |
| Iso Code | LOGU2216PAER-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOGU2216PAERGMPR1535 |
| Chip Breaker | ER-GM |
| Shape | Rectangle |
| Length of Cut (mm) | 22.80 |
| Insert Holding Method | Screw |
| Thickness (mm) | 16.90 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4921 |
| Width (Mm - 2 Decimals) | 12.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.6654 |
| Length (Decimal Inch - 4 Decimals) | 0.8976 |
 | |
| MSC Part # | 16391021 |
| Mfr Part # | TLC40001 |
| Country of OriginCountry of Origin is subject to change | VARIOUS |
