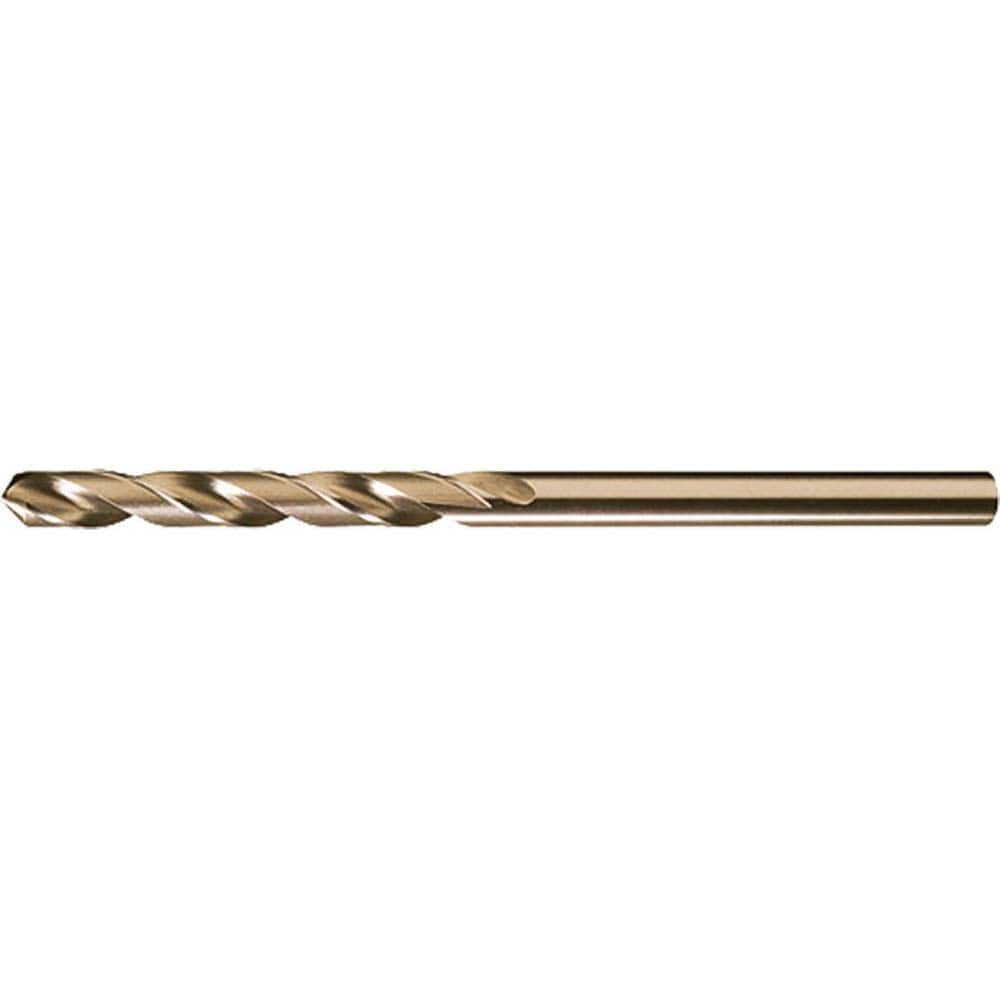

Cleveland - Aircraft Extension Drill Bits; Drill Bit Size (Inch): 7/64 ; Drill Bit Size (Decimal): 0.1094 ; Drill Point Angle (Degrees): 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Oxide ; Overall Length (Inch): 12
Item #: 16412892
Brand: Cleveland
Model #: C08168
Product Specifications
Aircraft Extension Drill Bits; Drill Bit Size (Inch): 7/64 ; Drill Bit Size (Decimal): 0.1094 ; Drill Point Angle (Degrees): 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Oxide ; Overall Length (Inch): 12
| Drill Bit Size (Inch) | 7/64 |
| Drill Bit Size (Decimal) | 0.1094 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide |
| Overall Length (Inch) | 12 |
| Flute Length (Decimal Inch) | 12.0000 |
| Specification Designation | NAS |
| Shank Diameter (Decimal Inch) | 0.1094 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Maximum Drilling Depth (mm) | 2.78 |
| Maximum Drilling Depth (Decimal Inch) | 0.1094 |
| Shank Length (Decimal Inch) | 10.5000 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Specification Number | NAS 907 Type J |
| PSC Code | 5133 |
| Material Grade | M42 |
| Series/List | 3722 |
| Through Coolant | No |
