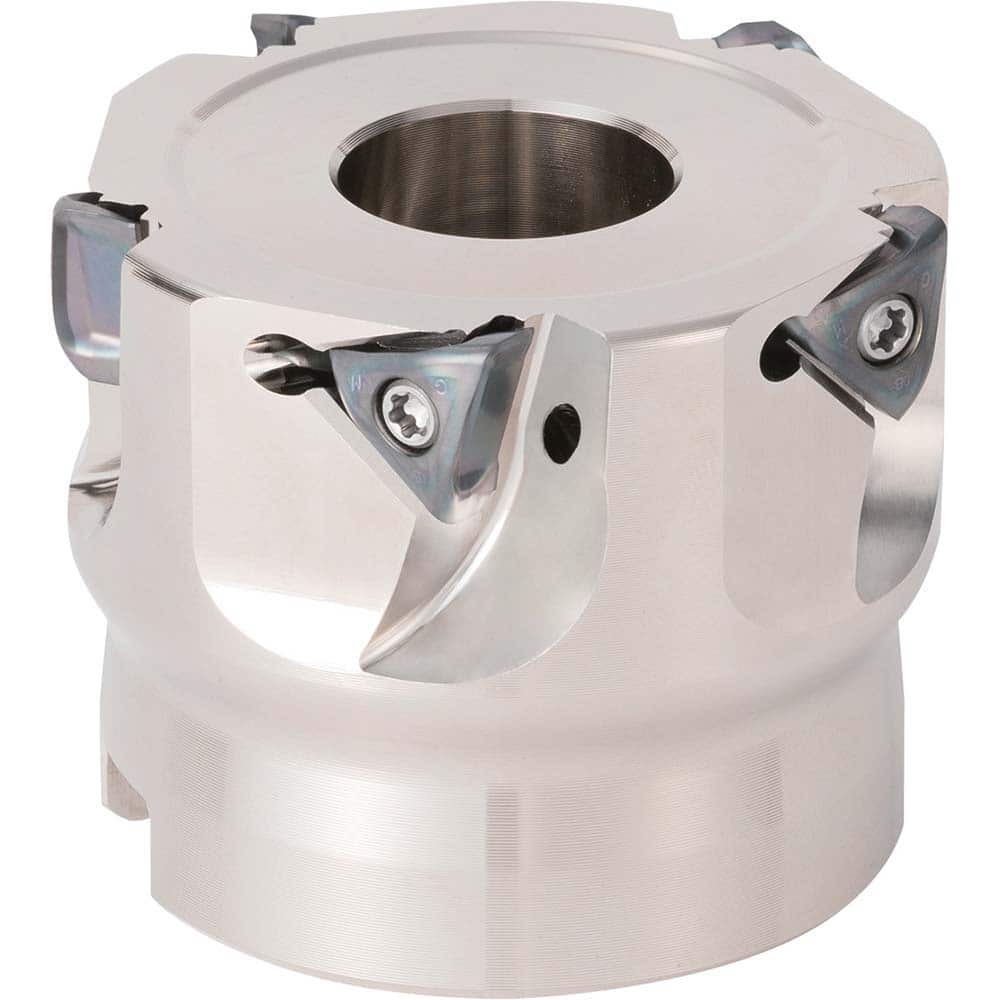

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2.0000 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 0.75 ; Lead Angle: 90 ; Overall Height (mm): 40.00000 ; Insert Compatibility: TOMT06?
Item #: 16439689
Brand: Kyocera
Model #: 8609430
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2.0000 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 0.75 ; Lead Angle: 90 ; Overall Height (mm): 40.00000 ; Insert Compatibility: TOMT06?
| Cutting Diameter (Inch) | 2.0000 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 0.75 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00000 |
| Insert Compatibility | TOMT06? |
| Series | MEV |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEV |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Depth (Inch) | 0.1870 |
| Keyway Depth (Decimal Inch) | 0.1870 |
| Maximum RPM | 12500.000 |
| Pitch | Standard |
| ISO Number | MEV2000R-06-6T |
| Counterbore Diameter (Decimal Inch) | 0.6693 |
| Toolholder Material | Steel |
