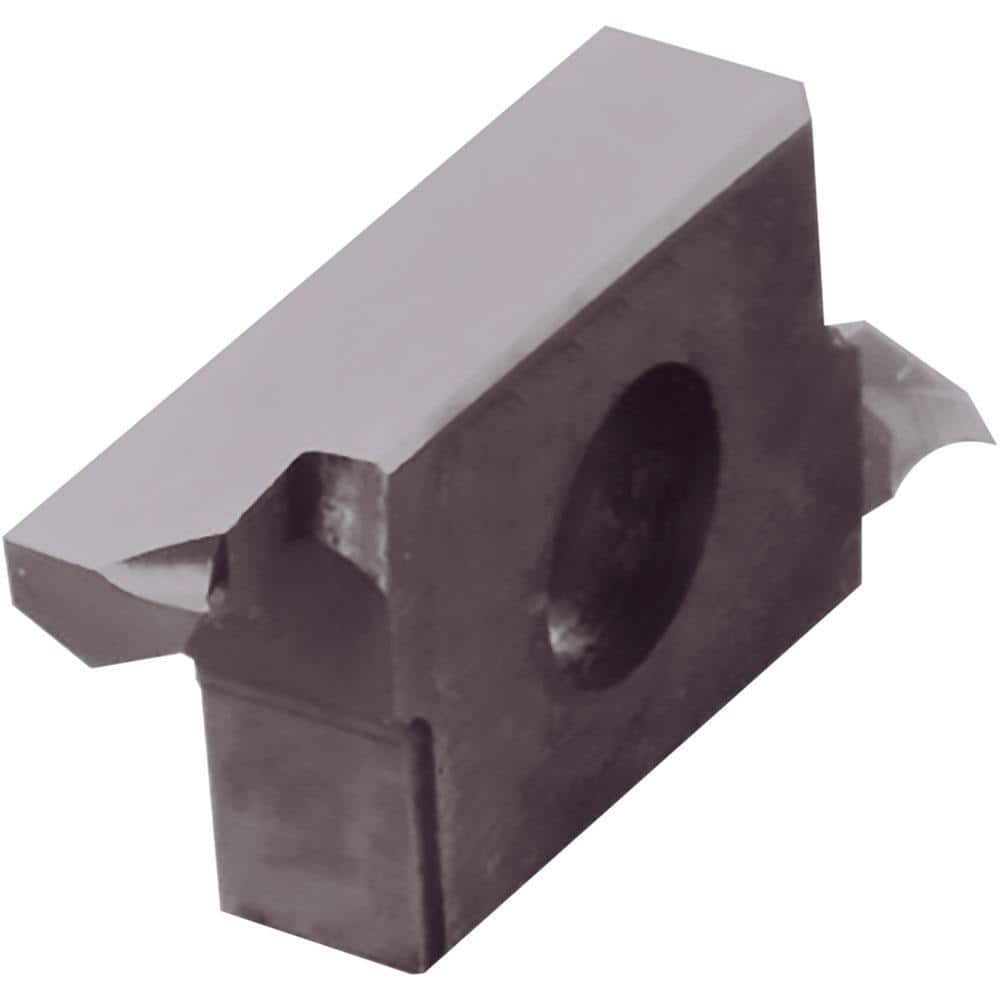

Boring Insert: TWBTR02503 PR1535, Solid Carbide Megacoat Nano Finish, 10 °, 0.002″ Corner Radius, 5 ° Relief
Item #: 16440943
Brand: Kyocera
Model #: TLC58695
Product Specifications
| Minimum Bore Diameter (mm) | 2.50 |
| Maximum Bore Depth (mm) | 3.00 |
| Toolholder Style | TWBTR |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 16.0000 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 5 |
| Series | Twin Bar |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | TWBTR 02503005 PR1535 |
| Insert Size | 02503 |
| Insert Style | TWBTR |
