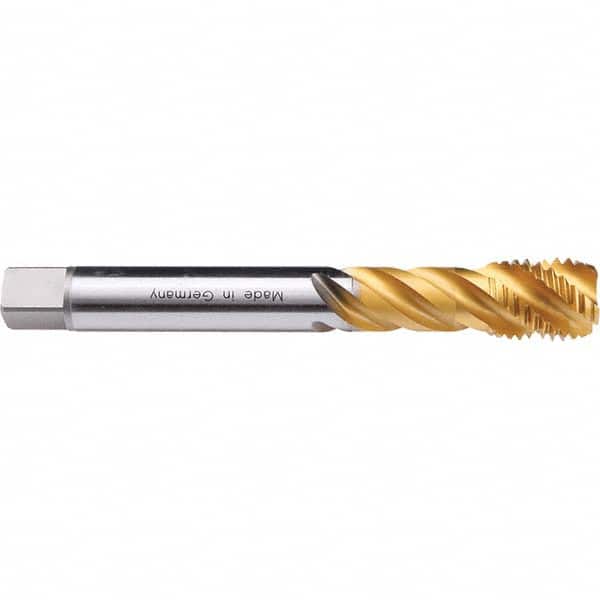

Spiral Flute Tap: M20 x 1.50, Metric Fine, Modified Bottoming, 6HX Class of Fit, TiN Finish 4.9213″ OAL, Right Hand Flute, Right Hand Thread, D6, Series Enorm
Item #: 16558439
Brand: Emuge
Model #: C3600F01.0422
Product Specifications
| Coating/Finish | TIN |
| Thread Size (mm) | M20 x 1.50 |
| Thread Standard | Metric Fine |
| Thread Limit | D6 |
| Thread Pitch (mm) | 1.50 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 40.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (mm) | 16.00 |
| Tapping Depth (mm) | 60.00 |
| Square Size (mm) | 12.00 |
| Flute Style | Fast |
| Material Application | Stainless Steel |
| Series | Enorm |
| Helix Angle Range | 15 to 45 |
| Shank Length (mm) | 12.00 |
| Coolant Through | No |
| Class Of Fit | 6HX |
