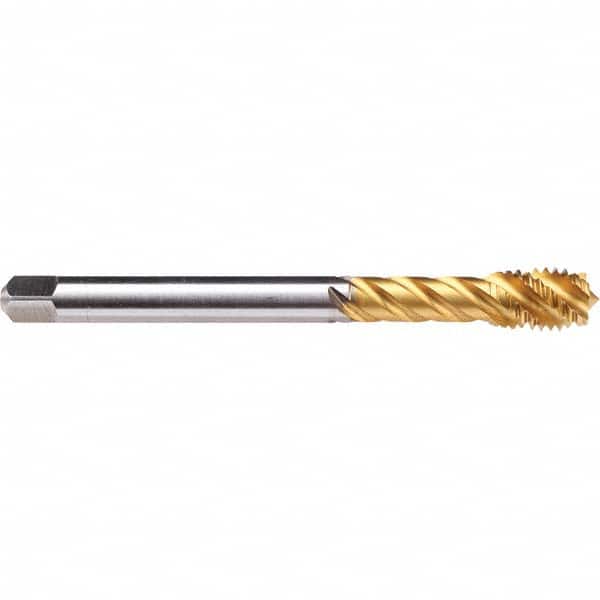

Spiral Flute Tap: M12 x 1.75, Metric, 4 Flute, Modified Bottoming, 6HX Class of Fit, TiN Finish 4.3307″ OAL, Right Hand Flute, Right Hand Thread, D6, Series Enorm
Item #: 16558454
Brand: Emuge
Model #: C3600F01.0112
Product Specifications
| Coating/Finish | TIN |
| Thread Size (mm) | M12 x 1.75 |
| Thread Standard | Metric |
| Thread Limit | D6 |
| Thread Pitch (mm) | 1.75 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 24.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (mm) | 9.00 |
| Tapping Depth (mm) | 36.00 |
| Square Size (mm) | 9.00 |
| Flute Style | Fast |
| Material Application | Stainless Steel |
| Series | Enorm |
| Helix Angle Range | 15 to 45 |
| Shank Length (mm) | 7.00 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 6HX |
