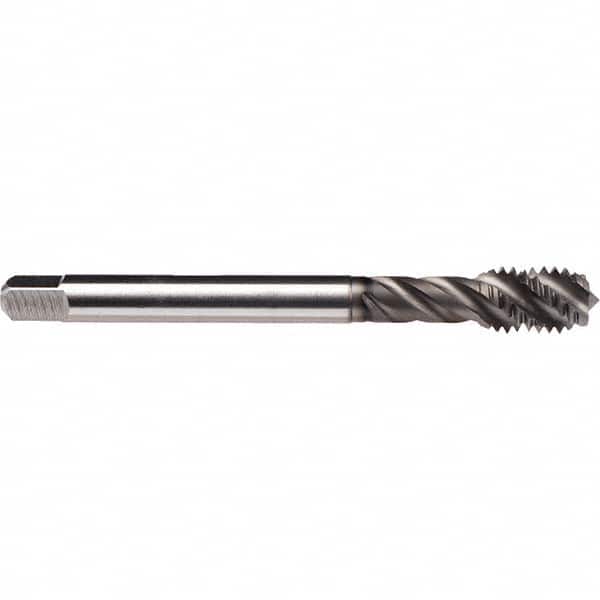

Spiral Flute Tap: #2-8, UN, 8 Flute, 2-3 P, 2B Class of Fit, GLT-1 Finish 1.969″ Thread Length, Right Hand Flute, Right Hand Thread, H7, Series Enorm
Item #: 16558504
Brand: Emuge
Model #: CU50C400.5261
Product Specifications
| Coating/Finish | GLT-1 |
| Thread Size (Inch - 0 Decimals) | #2-8 |
| Thread Standard | UN |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.9690 |
| Overall Length (mm) | 225.00 |
| Chamfer | 2-3 P |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 1.6440 |
| Tapping Depth (Decimal Inch) | 6.0000 |
| Square Size (Decimal Inch) | 1.2330 |
| Flute Style | Fast |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy |
| Series | Enorm |
| Coolant Through | No |
| Teeth per Inch | 8 |
| Number Of Flutes | 8 |
| Class Of Fit | 2B |
