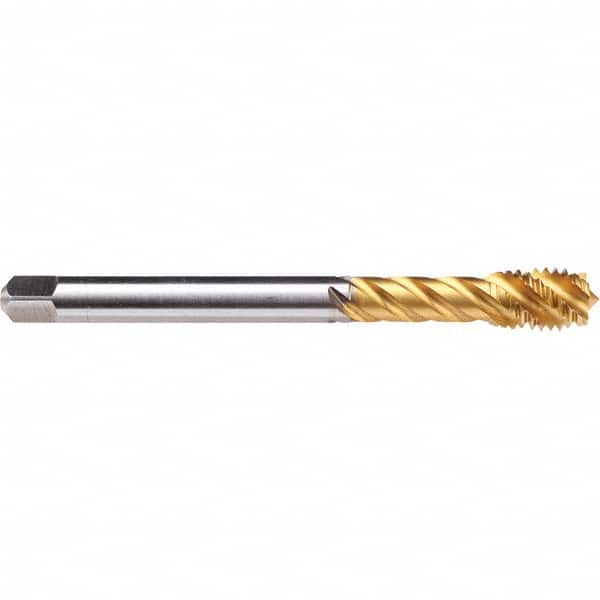

Spiral Flute Tap: M14 x 1.50, Metric Fine, Modified Bottoming, 6HX Class of Fit, HSS-E, TiN Finish 3.937″ OAL, Right Hand Flute, Right Hand Thread, D6
Item #: 16558769
Brand: Emuge
Model #: C3600F01.0331
Product Specifications
| Material | HSS-E |
| Coating/Finish | TIN |
| Thread Size (mm) | M14 x 1.50 |
| Thread Standard | Metric Fine |
| Thread Limit | D6 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 28.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Oversize | No |
| Shank Diameter (mm) | 11.00 |
| Tapping Depth (mm) | 42.00 |
| Flute Style | Fast |
| Material Application | Stainless Steel |
| Helix Angle Range | 15 to 45 |
| Shank Length (mm) | 9.00 |
| Coolant Through | No |
| Class Of Fit | 6HX |
