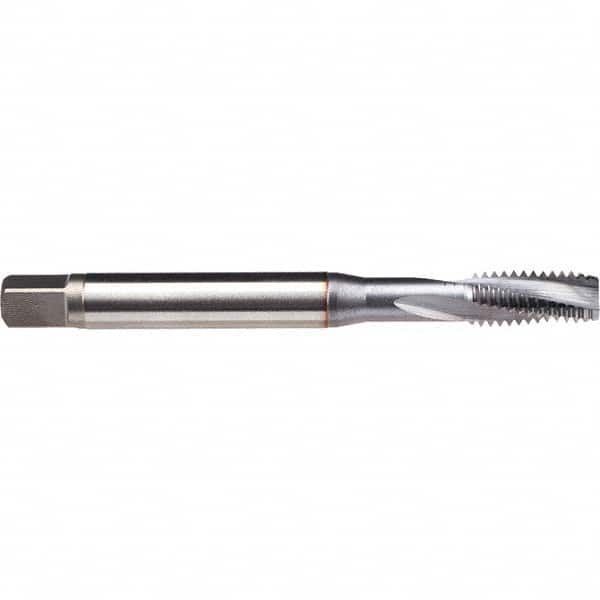

Spiral Flute Tap: 3/4-10, UNC, 3 Flute, 2-3 P, 2B Class of Fit, HSS-E, TICN Finish 4.9213″ OAL, Right Hand Flute, Right Hand Thread, H7
Item #: 16559056
Brand: Emuge
Model #: CU979000.5016
Product Specifications
| Material | HSS-E |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | 3/4-10 |
| Thread Standard | UNC |
| Thread Limit | H7 |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Chamfer | 2-3 P |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Tapping Depth (Decimal Inch) | 2.2500 |
| Tapping Depth (Fractional Inch) | 2-1/4 |
| Square Size (Decimal Inch) | 0.4420 |
| Flute Style | Slow |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
| Class Of Fit | 2B |
