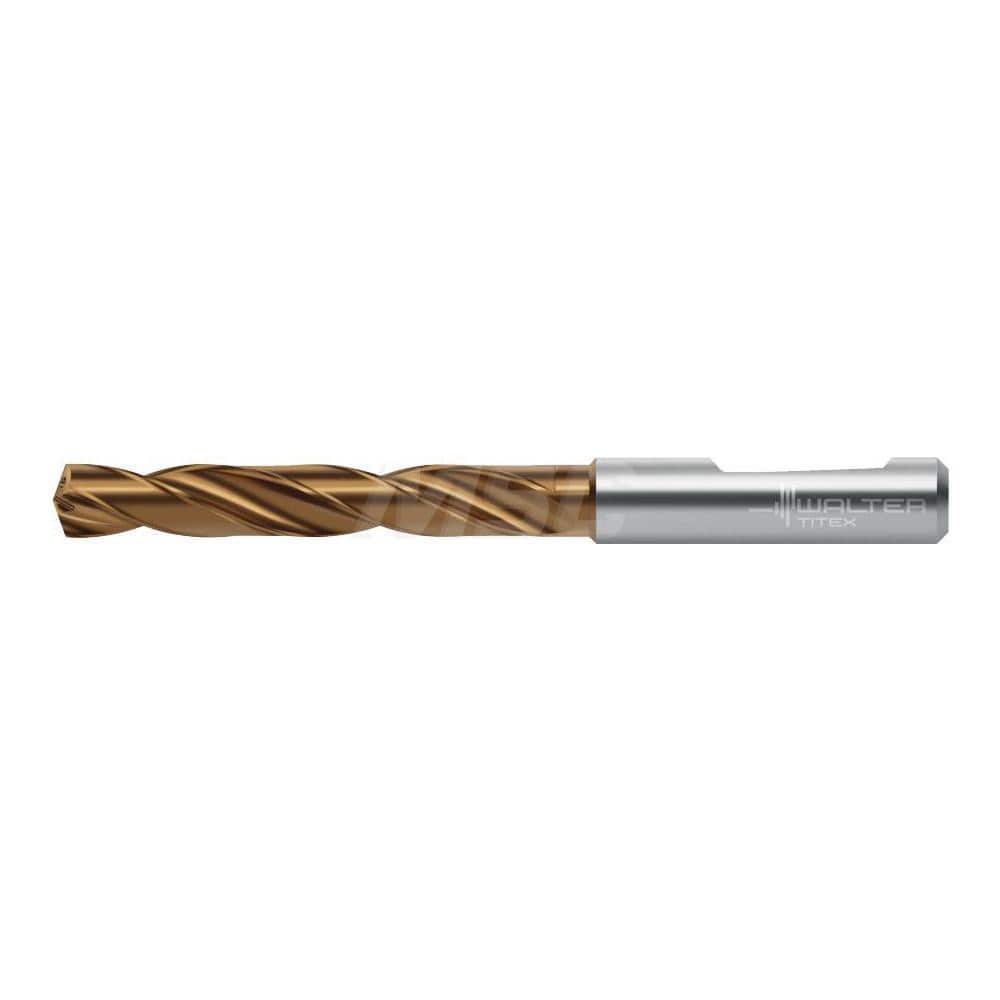

Jobber Length Drill Bit: 0.622″ Dia, 140 °, Solid Carbide TiSiAlCrN, AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series DC160
Item #: 16563694
Brand: Walter-Titex
Model #: 7377709
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6220 |
| Drill Bit Size (mm) | 15.80 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 133.00 |
| Flute Length (mm) | 83.00 |
| Series | DC160 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8900 |
| Drill Point Length (mm) | 2.88 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | WJ30ET |
