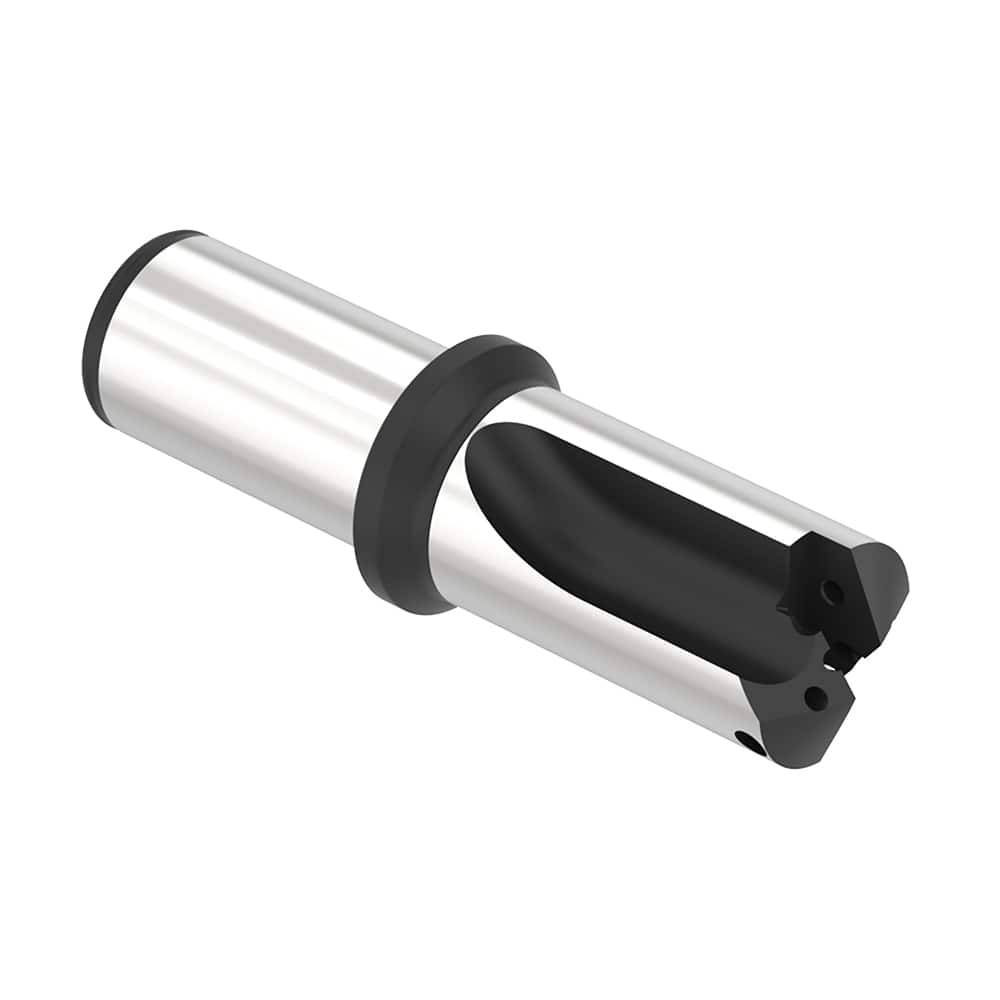

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (Decimal Inch): 1.6140 ; Maximum Drill Diameter (Decimal Inch): 1.8820 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Spade Drill Length: Short Length
Item #: 16711483
Brand: Allied Machine and Engineering
Model #: HTA3C01-150C
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (Decimal Inch): 1.6140 ; Maximum Drill Diameter (Decimal Inch): 1.8820 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Spade Drill Length: Short Length
| Series | T-A Pro |
| Minimum Drill Diameter (Decimal Inch) | 1.6140 |
| Maximum Drill Diameter (Decimal Inch) | 1.8820 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5 |
| Spade Drill Length | Short Length |
| Overall Length (Decimal Inch) | 6.322 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.6180 |
| Flute Type | Straight |
| Body Length (Decimal Inch) | 3.6340 |
| Shank Length (Decimal Inch) | 2.6880 |
| Through Coolant | Through Coolant |
