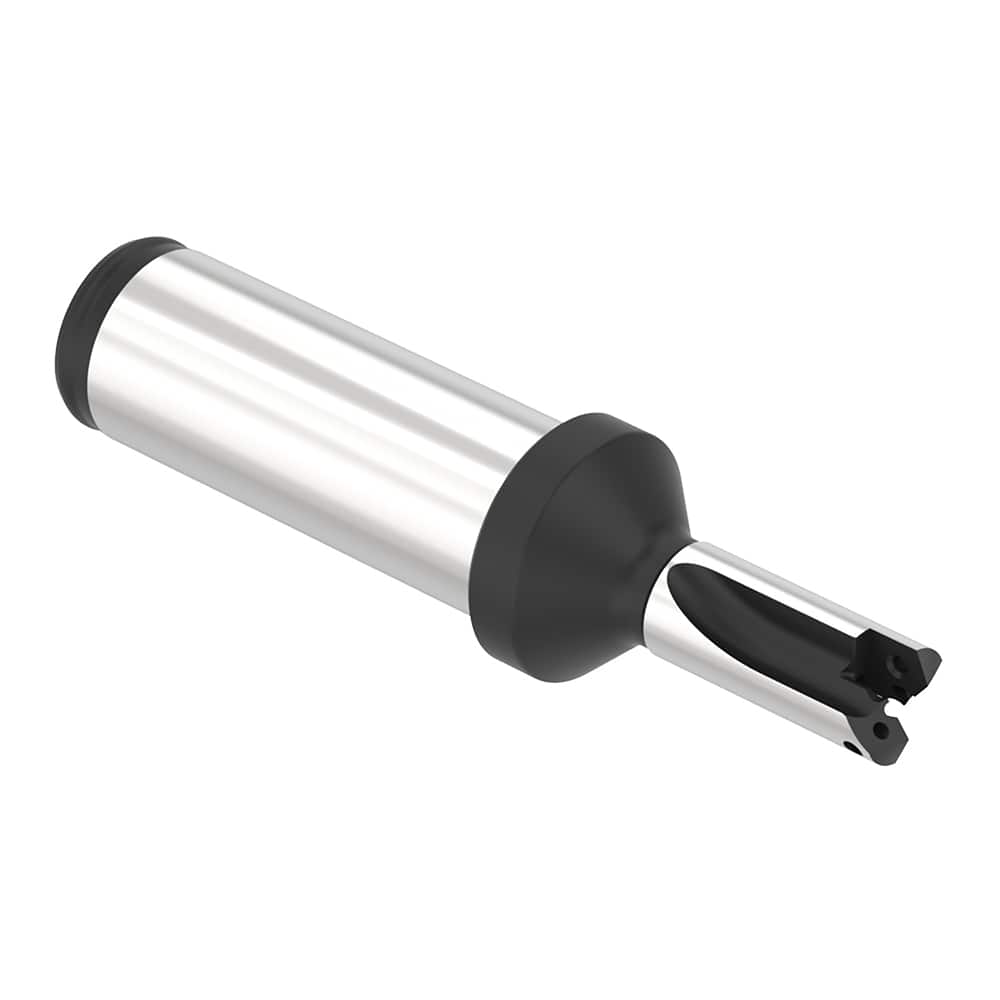

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 11.10 ; Maximum Drill Diameter (mm): 12.69 ; Shank Type: Cylindrical ; Shank Diameter (mm): 20.0000 ; Spade Drill Length: Short Length
Item #: 16717084
Brand: Allied Machine and Engineering
Model #: HTAZA01-20CM
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 11.10 ; Maximum Drill Diameter (mm): 12.69 ; Shank Type: Cylindrical ; Shank Diameter (mm): 20.0000 ; Spade Drill Length: Short Length
| Series | T-A Pro |
| Minimum Drill Diameter (mm) | 11.10 |
| Maximum Drill Diameter (mm) | 12.69 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 90.6600 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 12.80 |
| Flute Type | Straight |
| Body Length (mm) | 40.650 |
| Shank Length (mm) | 50.010 |
| Through Coolant | Through Coolant |
