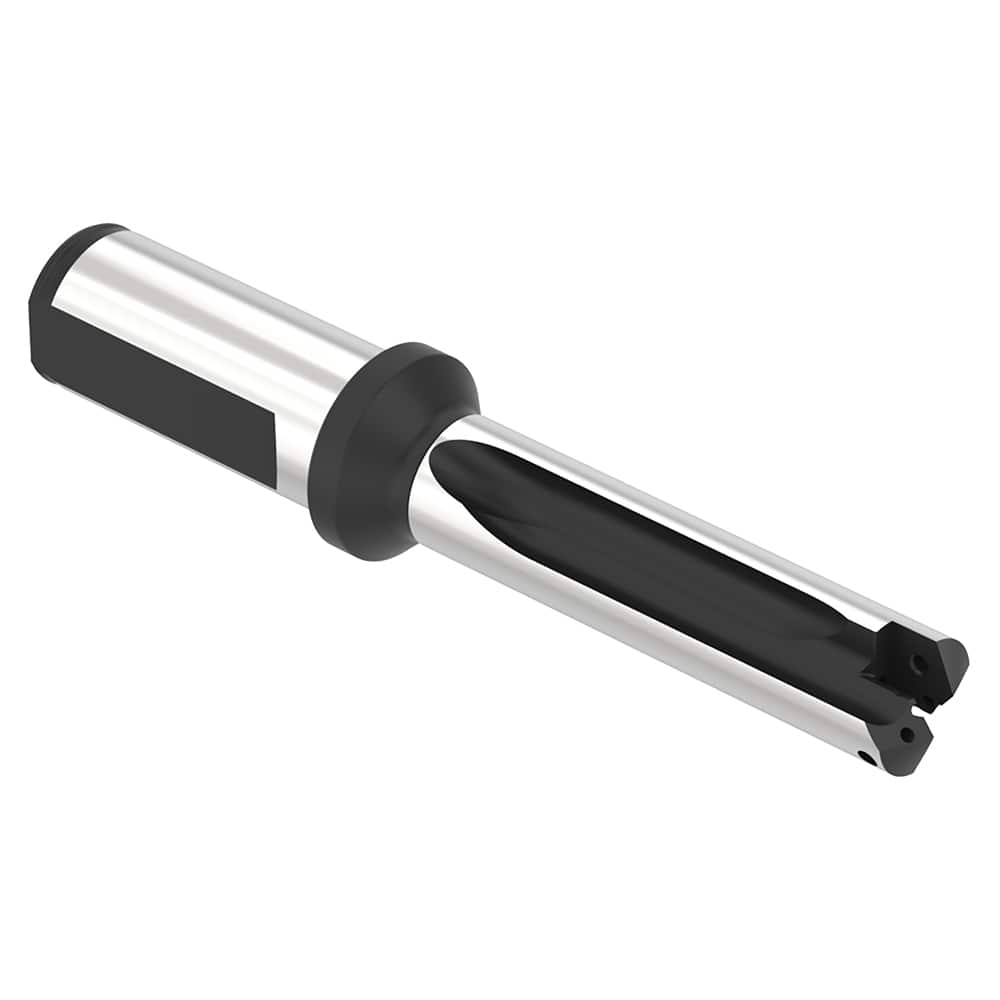

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 20.57 ; Maximum Drill Diameter (mm): 24.40 ; Shank Type: Flanged ; Shank Diameter (mm): 25.0000 ; Spade Drill Length: Standard Length
Item #: 16722183
Brand: Allied Machine and Engineering
Model #: HTA1C03-25FM
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 20.57 ; Maximum Drill Diameter (mm): 24.40 ; Shank Type: Flanged ; Shank Diameter (mm): 25.0000 ; Spade Drill Length: Standard Length
| Series | T-A Pro |
| Minimum Drill Diameter (mm) | 20.57 |
| Maximum Drill Diameter (mm) | 24.40 |
| Shank Type | Flanged |
| Shank Diameter (mm) | 25.0000 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 156.9300 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 62.87 |
| Flute Type | Straight |
| Body Length (mm) | 100.920 |
| Shank Length (mm) | 56.010 |
| Through Coolant | Through Coolant |
