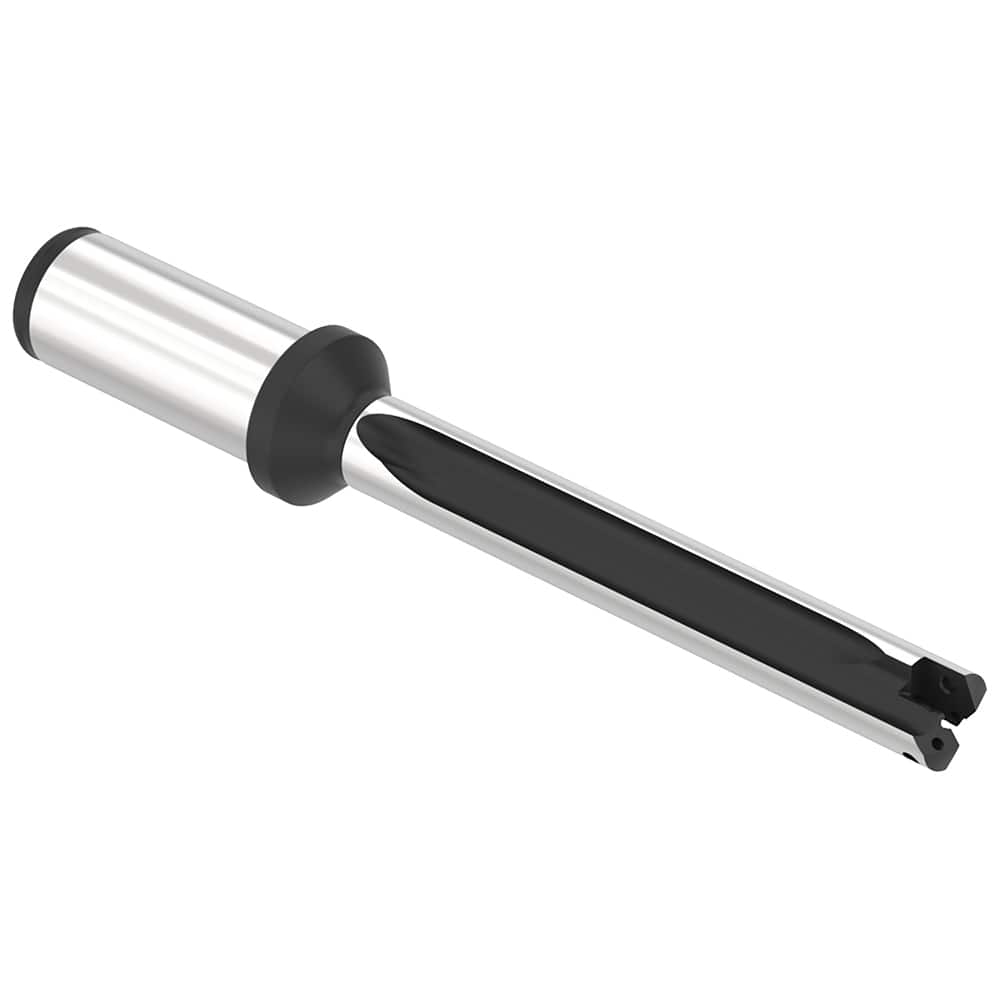

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 19.05 ; Maximum Drill Diameter (mm): 24.40 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Spade Drill Length: Standard Length
Item #: 16722654
Brand: Allied Machine and Engineering
Model #: HTA1B05-25CM
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 19.05 ; Maximum Drill Diameter (mm): 24.40 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.0000 ; Spade Drill Length: Standard Length
| Series | T-A Pro |
| Minimum Drill Diameter (mm) | 19.05 |
| Maximum Drill Diameter (mm) | 24.40 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 198.8400 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 104.78 |
| Flute Type | Straight |
| Body Length (mm) | 142.830 |
| Shank Length (mm) | 56.010 |
| Through Coolant | Through Coolant |
