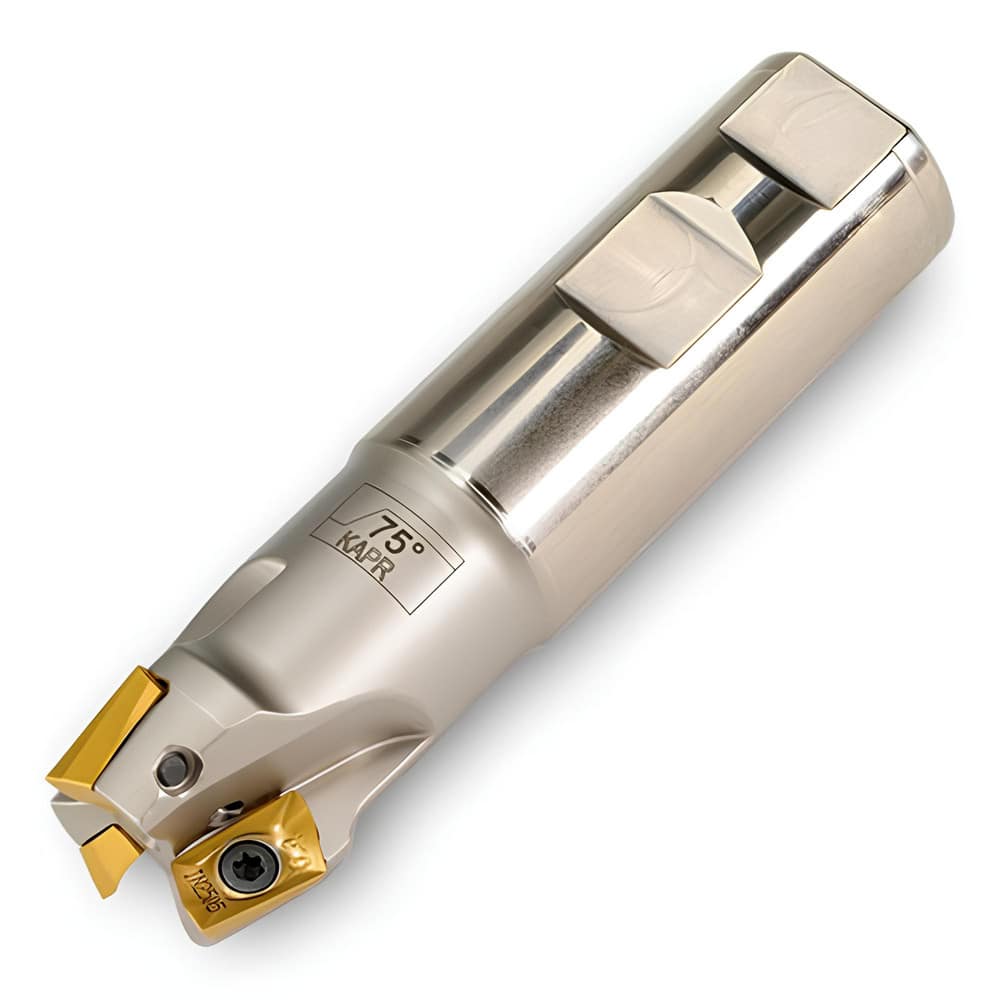

Indexable Chamfer & Angle End Mills; Minimum Cutting Diameter (Inch): 7/8; Minimum Cutting Diameter (Decimal Inch): 0.8750; Maximum Cutting Diameter (Decimal Inch): 1.1230; Lead Angle: 75; Maximum Depth of Cut (Decimal Inch): 0.4600; Compatible Insert Siz
Item #: 16911844
Brand: Ingersoll Cutting Tools
Model #: 2924170
Product Specifications
| Compatible Insert Size Code | 1304 |
| Shank Type | Weldon Flat |
| Number Of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 12_1R |
| Toolholder Style | 12L1R |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
