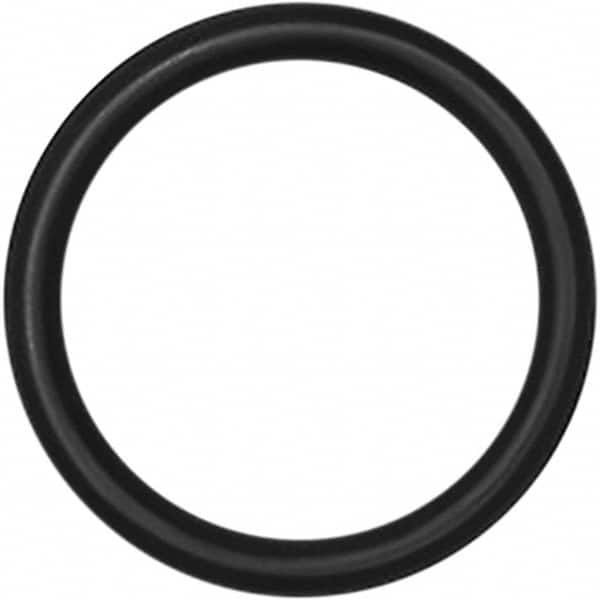

Value Collection - 3/8" OD EPDM (Peroxide Cured) O-Ring - 3/32" Thick, Round Cross Section, Durometer 70
Item #: 16964967
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | EPDM (Peroxide Cured) |
| Dash Number | 106 |
| System of Measurement | Inch |
| Durometer | 70 |
| Durometer (Shore A) | 70A |
| Inside Diameter (Inch) | 3/16 |
| Inside Diameter (Decimal Inch) | 0.1740 |
| Outside Diameter (Inch) | 3/8 |
| Outside Diameter (Decimal Inch) | 0.3800 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.1030 |
| Maximum Temperature (F) | 300.000 |
| Minimum Temperature (F) | -70.000 |
