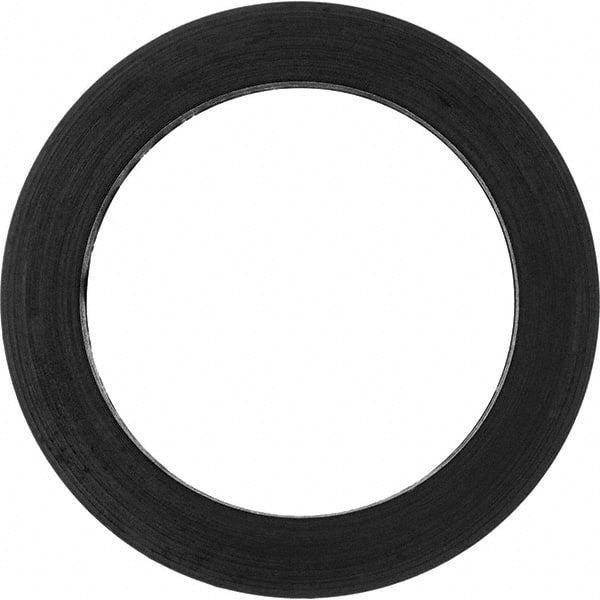

Value Collection - 3/4" OD Viton O-Ring - 1/16" Thick, Square Cross Section, Durometer 75
Item #: 16966624
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Square cross-section shapes offer good high pressure seals, but are best used in static applications. They can be used as a direct replacement for a round O-ring.
Viton is a highly corrosion-resistant material used against petroleum fluids, diester lubricants, silicone fluids, phosphate esters, solvents and acids except for fuming nitric acids. It is especially good for hard vacuum services and low gas permeability. Not for use with acetates, ketones, methyl alcohol, brake fluids, hot water or steam.
| Product Specifications | |
|---|---|
| Cross Section Shape | Square |
| Material | Viton |
| Dash Number | 016 |
| System of Measurement | Inch |
| Durometer | 75 |
| Durometer (Shore A) | 75A |
| Inside Diameter (Inch) | 3/8 |
| Inside Diameter (Decimal Inch) | 0.6140 |
| Outside Diameter (Inch) | 3/4 |
| Outside Diameter (Decimal Inch) | 0.7540 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0700 |
| Maximum Temperature (F) | 400.000 |
